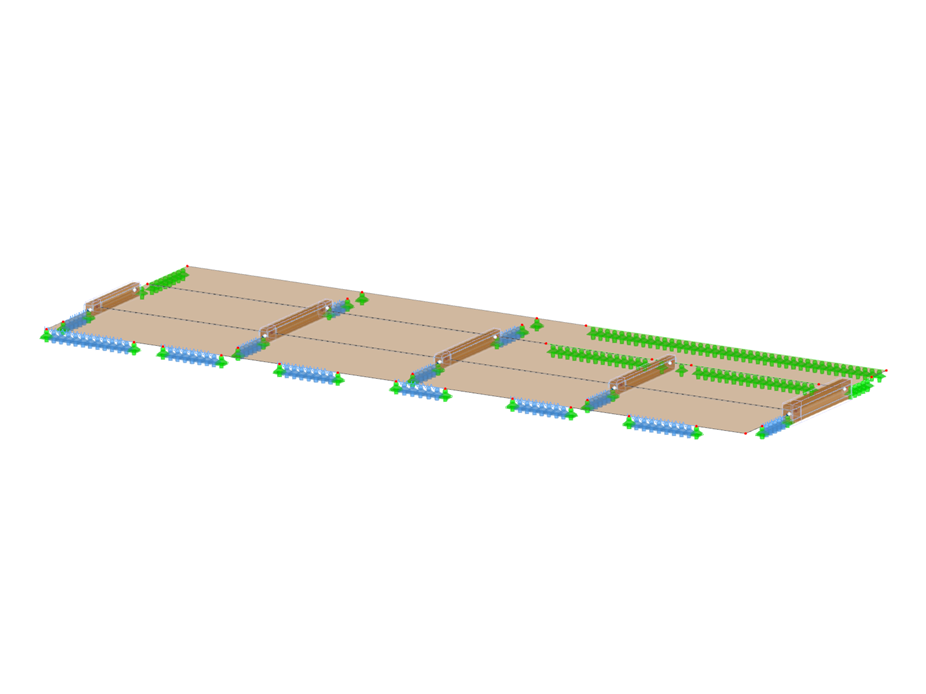

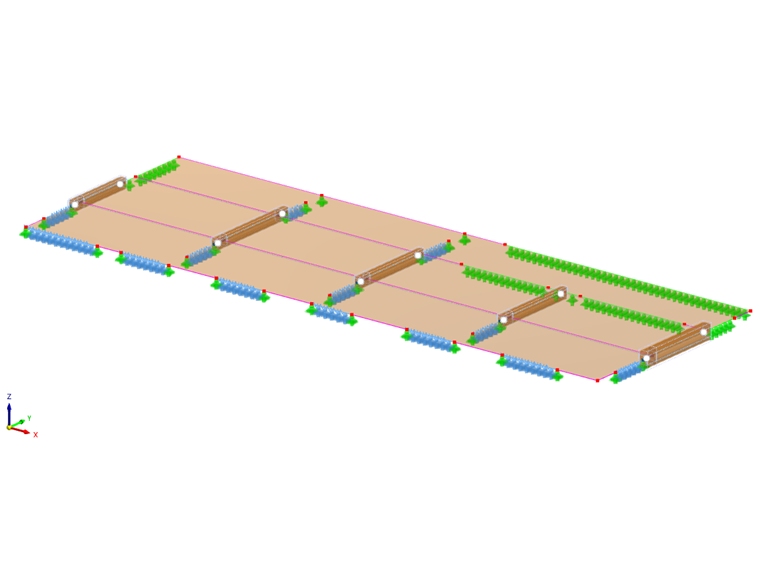

3D timber floor including CLT design acc. to CSA O86:19.
The model contains generated loads that are imported from the support reactions of the upper floor model (model no. 5792 shown below).
Model Used in
CLT and Timber Member Floor | CSA O86:19
| Number of Nodes | 60 |
| Number of Lines | 63 |
| Number of Members | 11 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 7 |
| Number of Result Combinations | 0 |
| Total Weight | 13.492 tons |
| Dimensions (Metric) | 19.200 x 0.000 x 6.700 m |
| Dimensions (Imperial) | 62.99 x 0 x 21.98 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
