The model represents a rectangular aluminum stage truss structure, designed for use in temporary staging applications. The truss exhibits robustness and lightweight characteristics typical of aluminum constructions, ideal for quick assembly and disassembly. This structural model is essential for simulations involving load distribution and structural stability assessments under varying conditions. Suitable for engineers working with temporary event architecture.

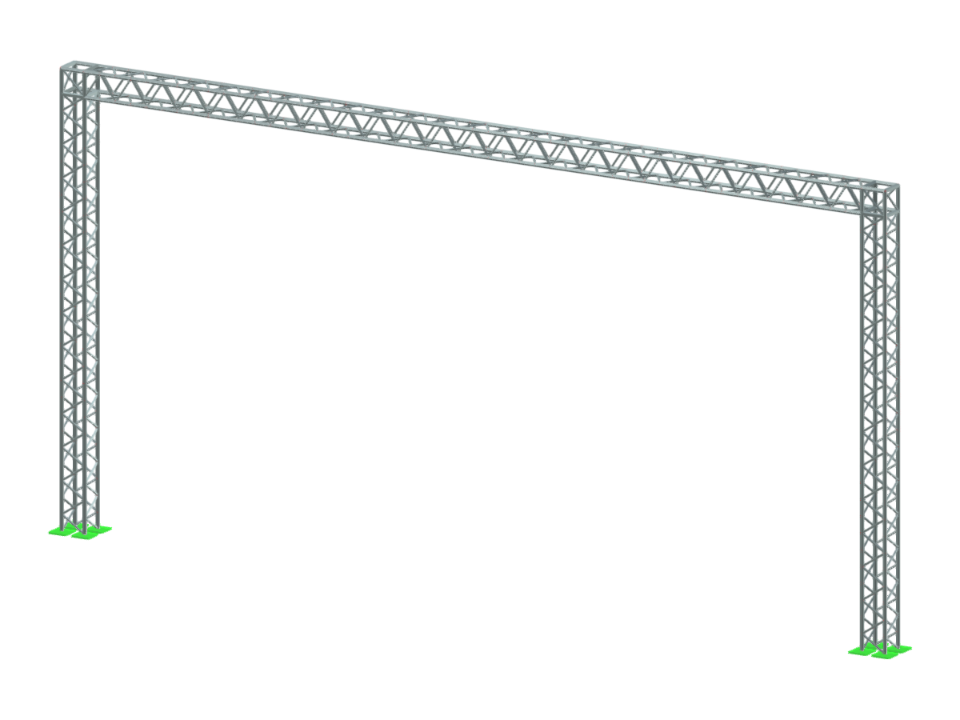

Rectangular Aluminum Stage Truss
| Block parameters editable dynamically | |
| Number of Nodes | 420 |
| Number of Lines | 846 |
| Number of Members | 846 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 3 |
| Number of Result Combinations | 1 |
| Total Weight | 1.576 tons |
| Dimensions (Metric) | 12.600 x 6.350 x 0.350 m |
| Dimensions (Imperial) | 41.34 x 20.83 x 1.15 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
