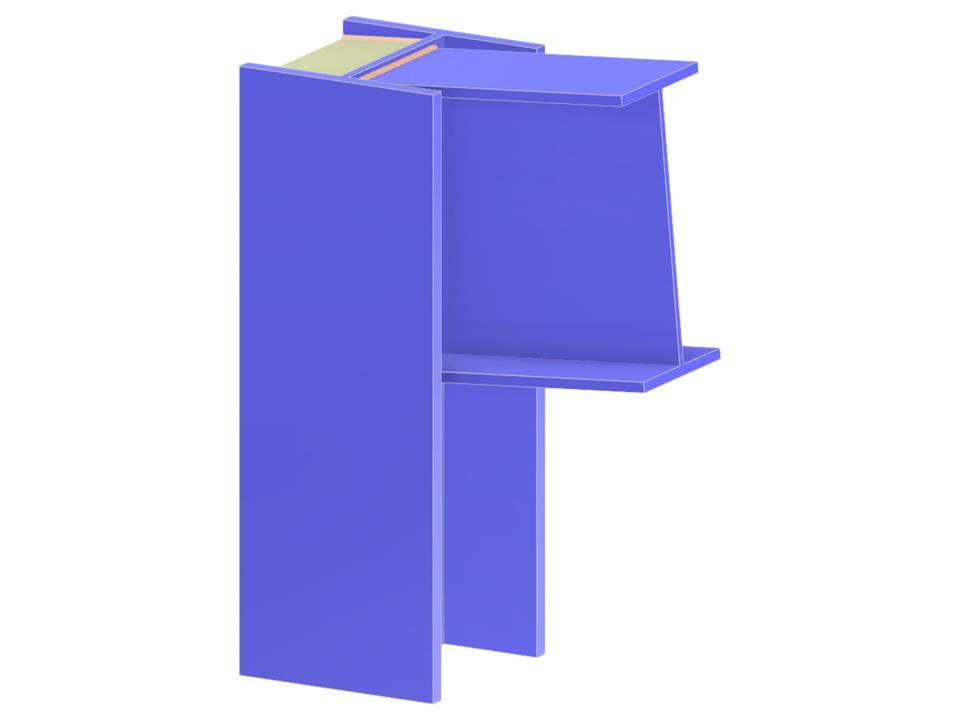

This model features a single-sided beam-to-column web connection with column web stiffeners and a welded connection. The connection design considers bending about the minor axis of the column, ensuring rigidity. Ideal for analyzing structural stability and ensuring effective load transfer in construction applications.
Beam to Column Web Connection
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.045 tons |
| Dimensions (Metric) | 0,321 x 0,488 x 0,000 m |
| Dimensions (Imperial) | 1.05 x 1.6 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
