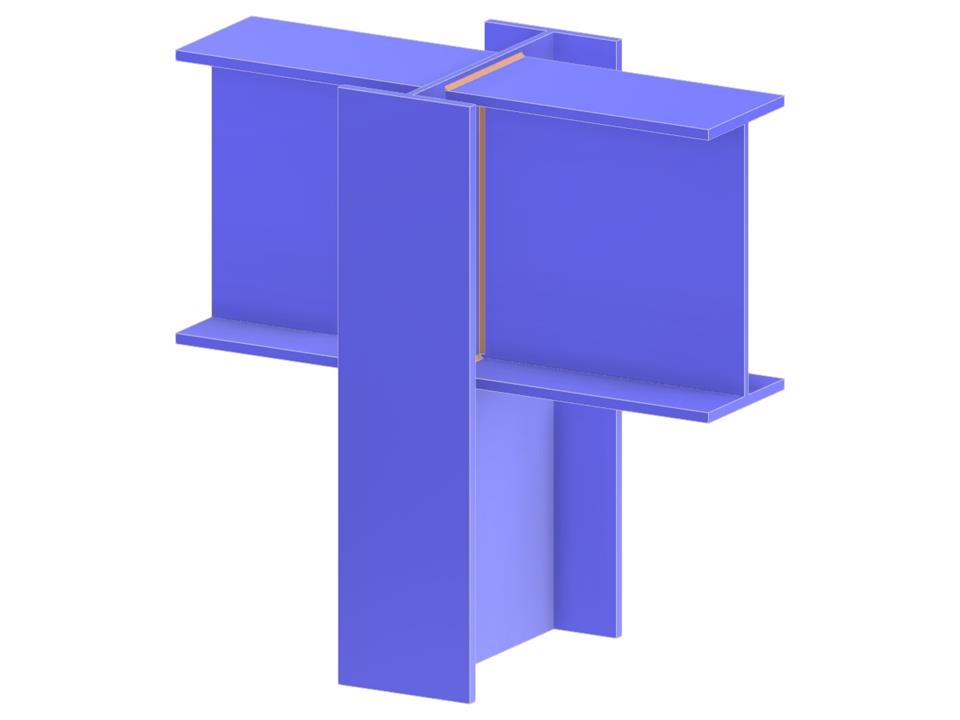

This model illustrates a welded, fixed beam-to-column connection on both sides featuring a double-sided connection. It is ideal for analyzing the structural behavior of the connection where beams meet column webs, ensuring stability and load transfer. The setup is applicable in various construction scenarios requiring robust connections.
Beams to Column Web Connection
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.056 tons |
| Dimensions (Metric) | 0.920 x 0.460 x 0.000 m |
| Dimensions (Imperial) | 3.02 x 1.51 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
