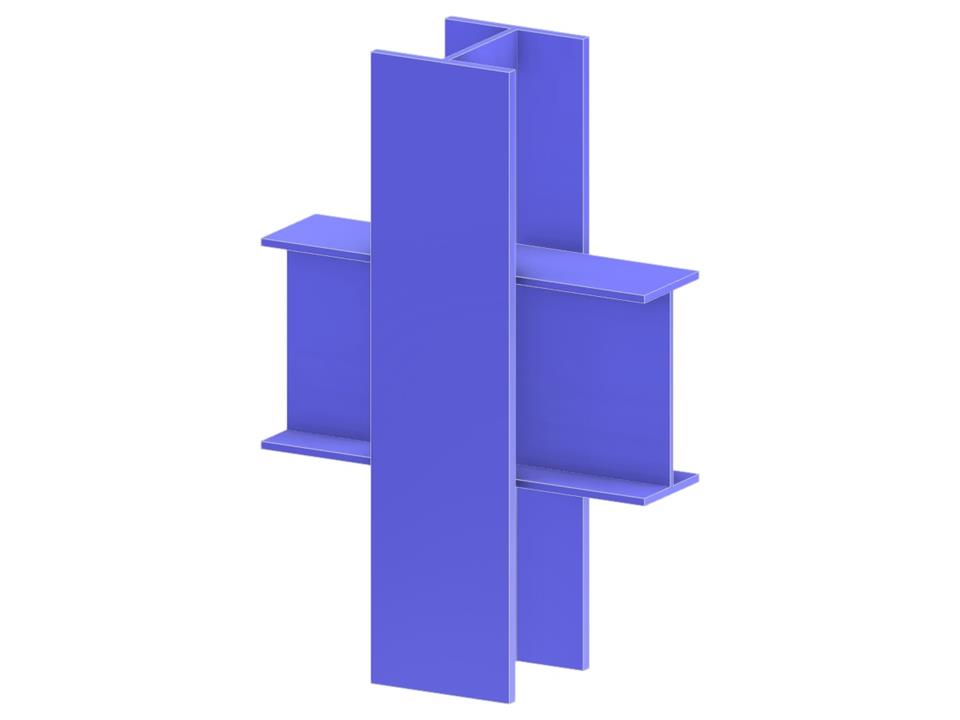

This model demonstrates a double-sided beam to column connection with a continuous column structure. The beams connect to the column web and are welded to form a cross joint. Such connections enhance the structural integrity in steel construction. Analyze the joint behavior and optimization using structural analysis software.
Beam to Column Web Connection
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.098 tons |
| Dimensions (Metric) | 0.840 x 0.920 x 0.000 m |
| Dimensions (Imperial) | 2.76 x 3.02 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
