This model illustrates a column-to-continuous beam connection involving beam flanges and bolted cleats. The assembly ensures a fixed connection at the column. It efficiently demonstrates load transfer within the structure, highlighting key features of bolted fixed-column connections. Suitable for advanced analysis in structural engineering.

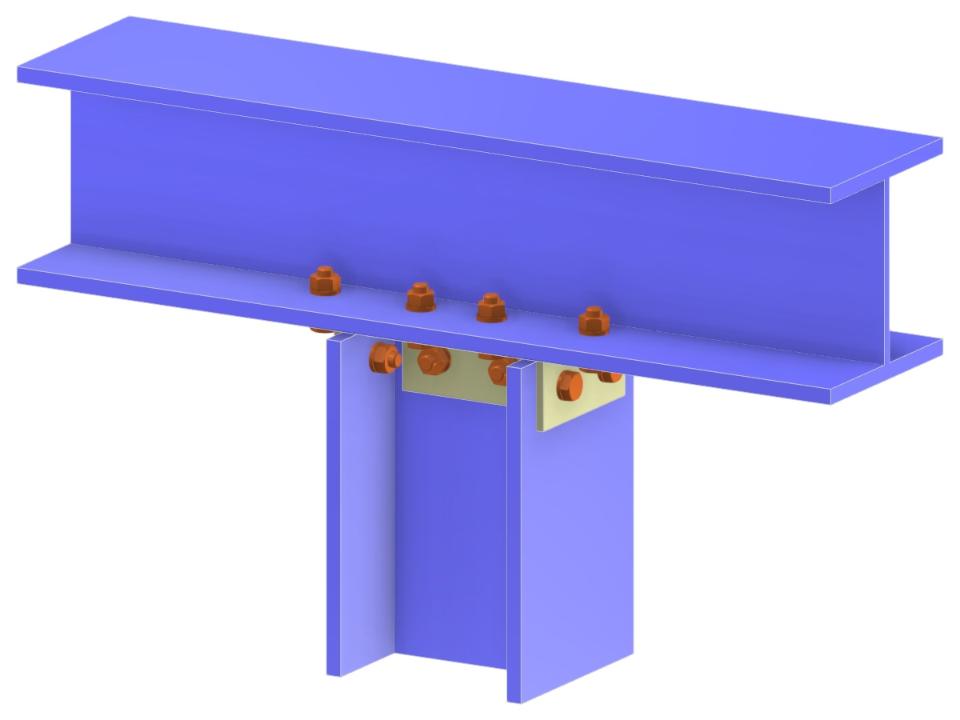

Column to Beam Flange Connection via Cleats
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.096 tons |
| Dimensions (Metric) | 0.920 x 0.460 x 0.000 m |
| Dimensions (Imperial) | 3.02 x 1.51 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
