This truss model features a Y-joint with notched gusset plates, designed for diagonal to chord connections. It is constructed with hollow rectangular cross-sections (RHS) to provide structural efficiency. The gusset plates are meticulously welded, ensuring optimal strength at the joint. This setup exemplifies a precise engineering solution for complex connections in truss structures.

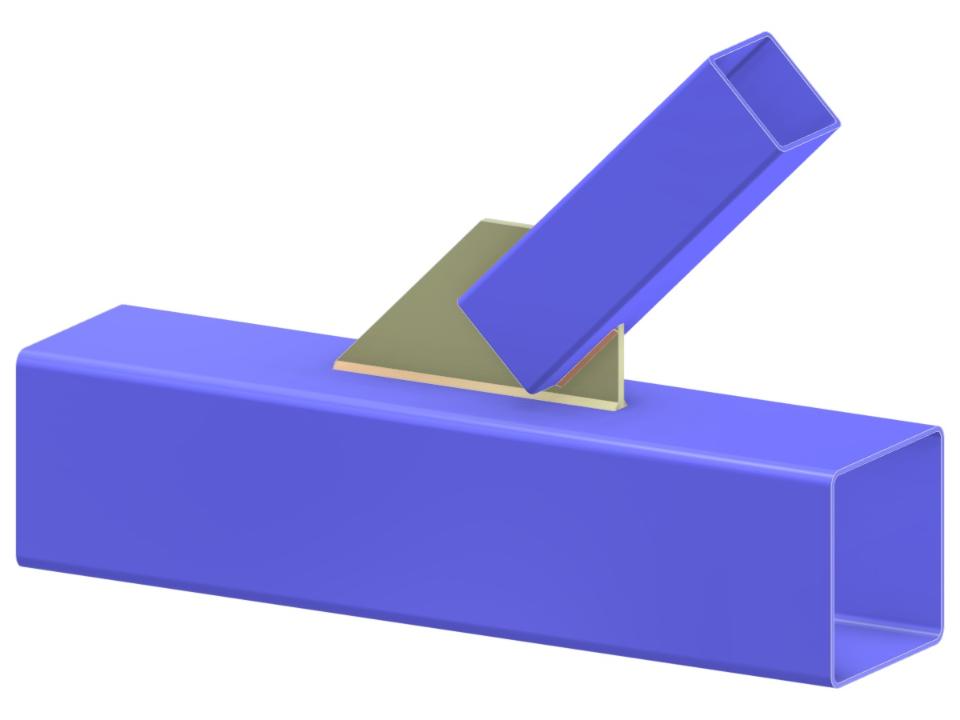

Truss Y-Joint | Diagonal to Chord Connection via Gusset Plate
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.042 tons |
| Dimensions (Metric) | 0.930 x 0.460 x 0.000 m |
| Dimensions (Imperial) | 3.05 x 1.51 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
