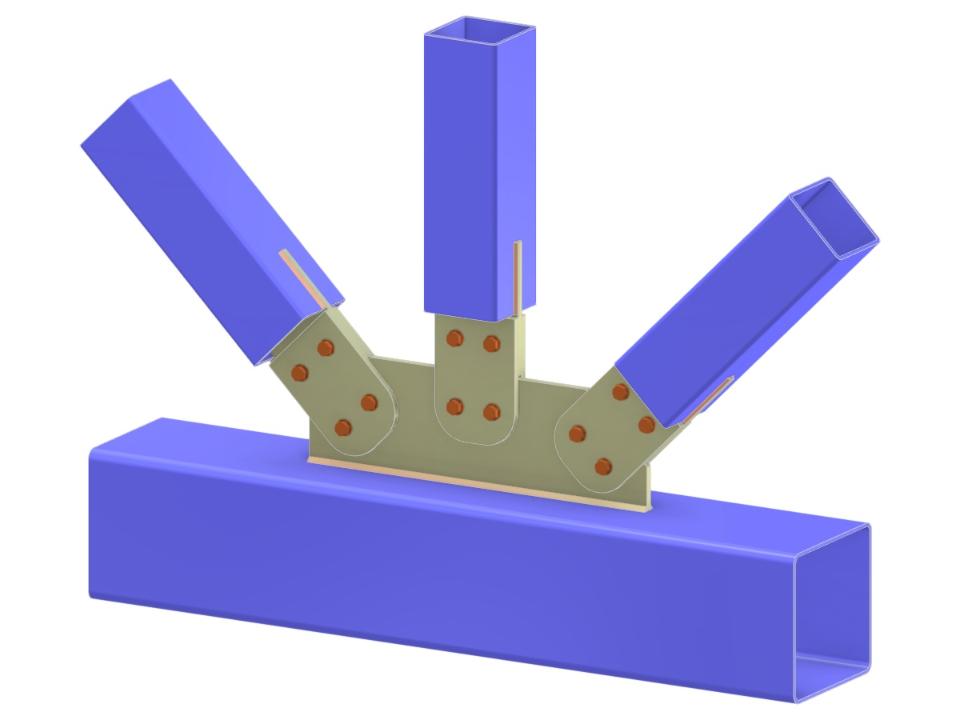

This model presents a truss design featuring KT-joints connected with gusset plates and bolted connections. It includes diagonals and vertical linked to the chord using a notched tongue plate, with additional cover plates to enhance structural stability. The model uses hollow cross-sections, specifically rectangular hollow sections (RHS), to ensure an optimized structural performance.
Truss KT-Joint | Diagonals and Vertical to Chord Connection via Gusset Plate, Tongue Plate, and Cover Plates
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 5 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.082 tons |
| Dimensions (Metric) | 1,170 x 0,780 x 0,000 m |
| Dimensions (Imperial) | 3.84 x 2.56 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
