The model features a welded gusset plate designed for diagonal bracing in an X-joint configuration. The structure utilizes L-sections to enhance stability and manage loads effectively. This intricate setup ensures optimal performance of the crossed diagonals under various conditions by employing precision welding techniques.

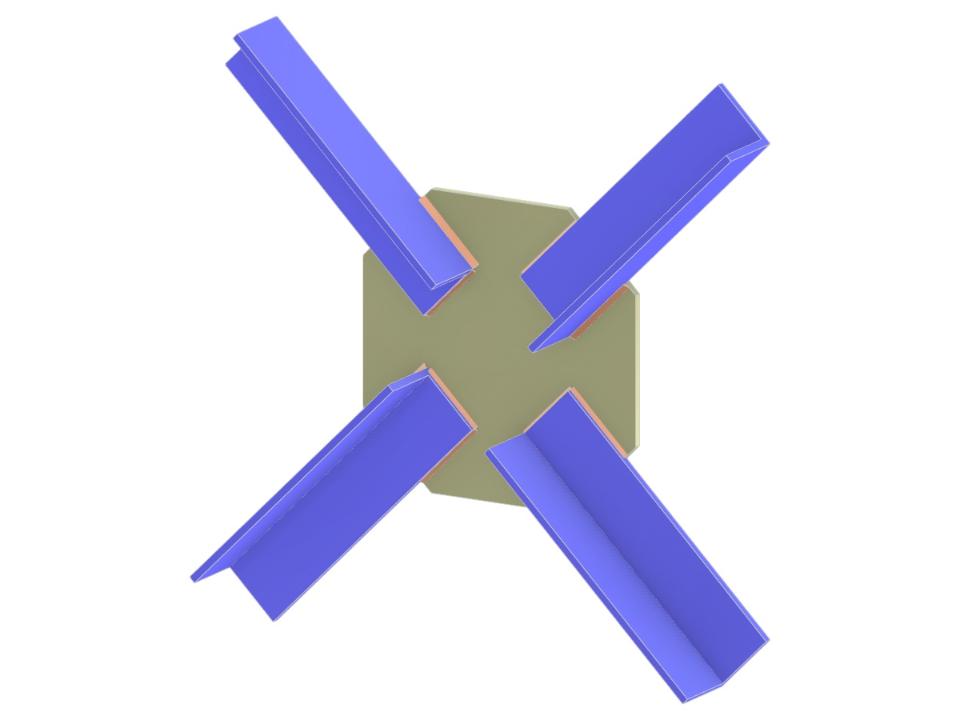

Bracing X-Joint | Diagonal to Diagonal Connection via Gusset Plate
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.031 tons |
| Dimensions (Metric) | 0,800 x 0,740 x 0,000 m |
| Dimensions (Imperial) | 2.62 x 2.43 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
