This model features a bracing system utilizing X-joints with diagonals and welded connections designed for hollow cross-sections, specifically rectangular hollow sections (RHS). The welded X-joint configuration provides enhanced structural integrity, enabling efficient load distribution. This design is particularly suitable for complex structural applications requiring robust and flexible joint solutions.

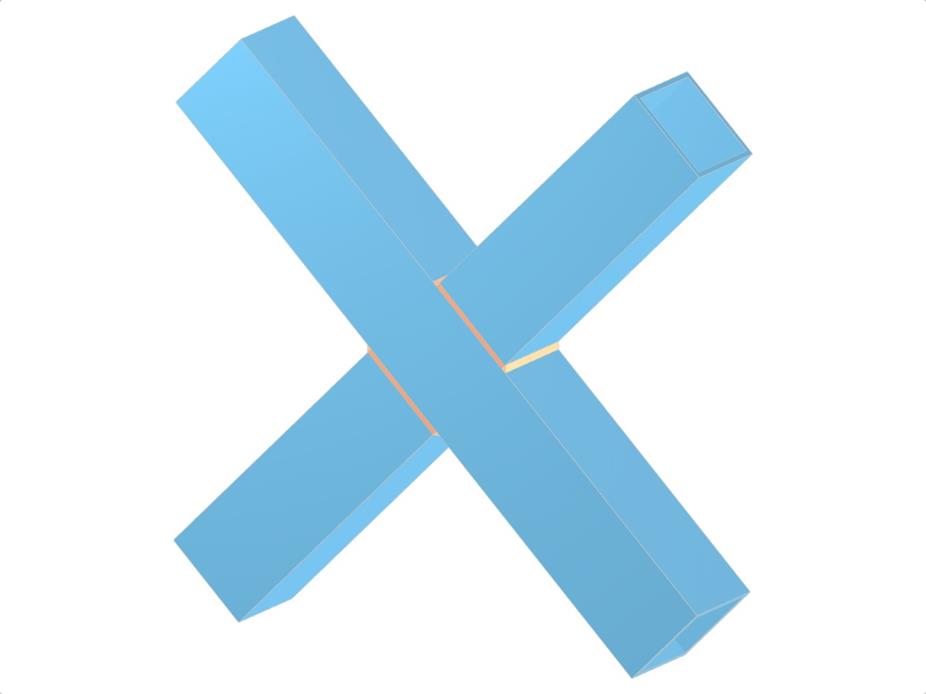

Bracing X-Joint | Diagonal to Diagonal Connection
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.021 tons |
| Dimensions (Metric) | 0,500 x 0,500 x 0,000 m |
| Dimensions (Imperial) | 1.64 x 1.64 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
