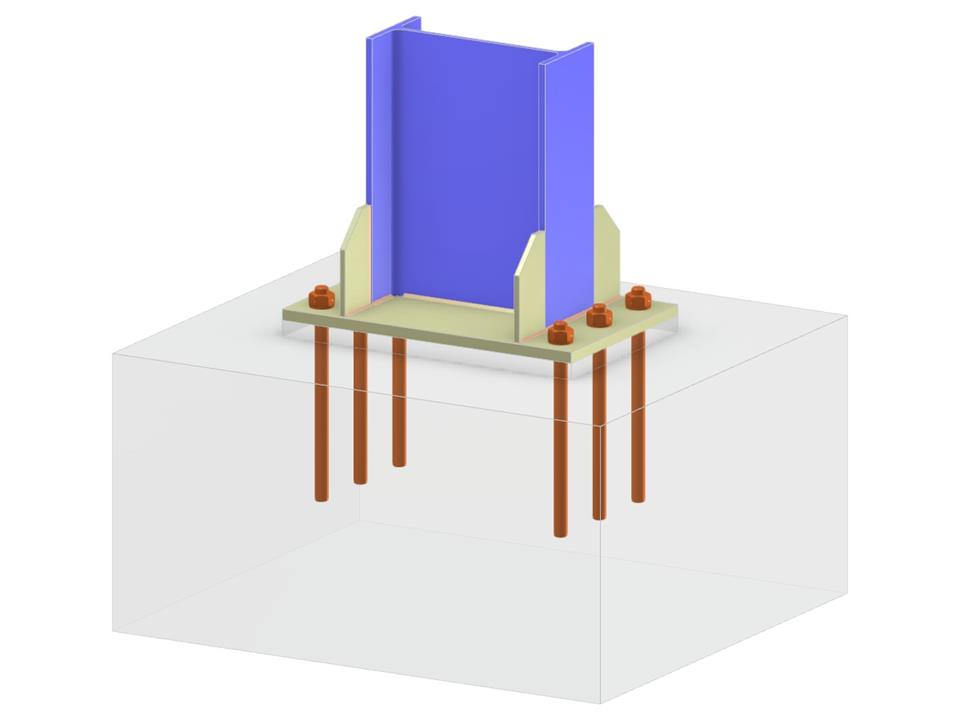

This model features a column base designed with a reinforced base plate and ribs, supporting an I-section for efficient load distribution. The structure is anchored securely to ensure stability and performance. Key aspects include the design and implementation of the anchoring system to optimize the load transfer from the column to the foundation. Suitable for scenarios requiring rigid support and durability.
Column Base
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.057 tons |
| Dimensions (Metric) | 0,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
