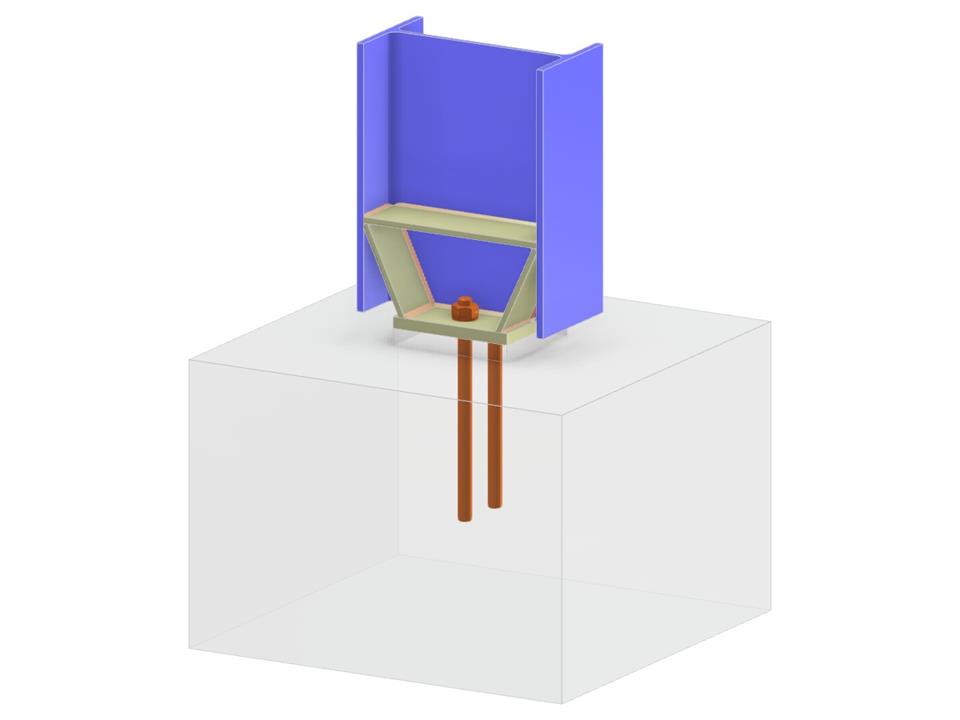

This model features a structural analysis of a column base equipped with a reduced base plate and both sloped and horizontal stiffeners. Designed for an I-section, the configuration includes complex anchoring solutions to optimize stability and performance. The analysis highlights the interplay of engineering design elements aimed at enhancing the load-bearing capacity of the structural setup. Indispensable for engineers dealing with intricate base connections, this model demonstrates efficient load transfer and foundational reinforcement.
Column Base
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.063 tons |
| Dimensions (Metric) | 0,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
