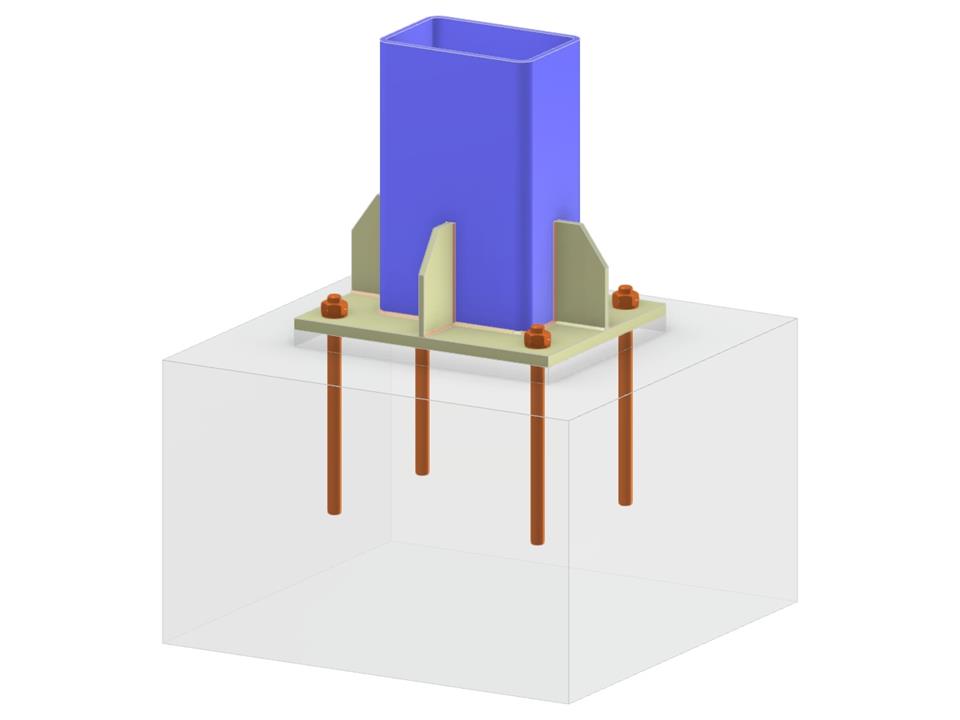

This model illustrates the structural design of a column base featuring a base plate and RHS (rectangular hollow section) elements. The design incorporates ribs for additional support and anchoring to ensure stability. Detailed connection strategies are executed to enhance load distribution and integration in construction projects. This model is ideal for understanding the structural base component interactions.
Column Base
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.073 tons |
| Dimensions (Metric) | 0.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
