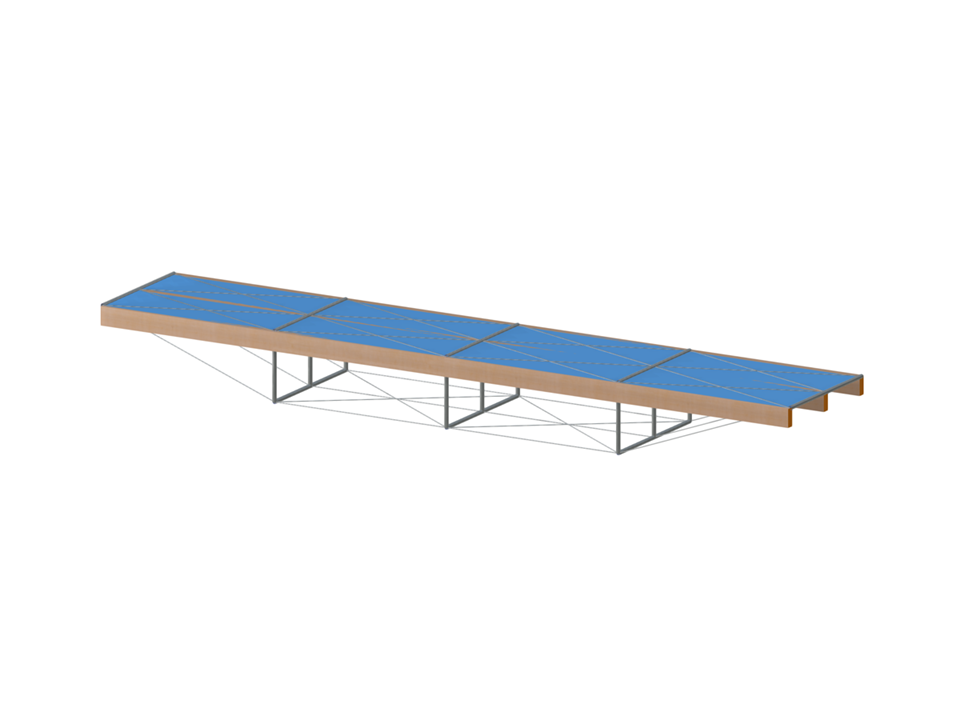

This model shows an underspanned bridge constructed from wood and steel, simulating realistic pedestrian loads. It illustrates the complex interaction between traditional materials and modern tensioning techniques. The model provides valuable insights into stress behavior and innovative design approaches.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Timber-Steel Bridge with Moving Load

Number of Nodes 32
Number of Lines 63
Number of Members 61
Number of Surfaces 1
Number of Solids 0
Number of Load Cases 22
Number of Load Combinations 4
Number of Result Combinations 0
Total Weight 3.374 t
Dimensions (Metric) 20.000 x 1.850 x 3.600 m
Dimensions (Imperial) 65.62 x 6.07 x 11.81 feet

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
