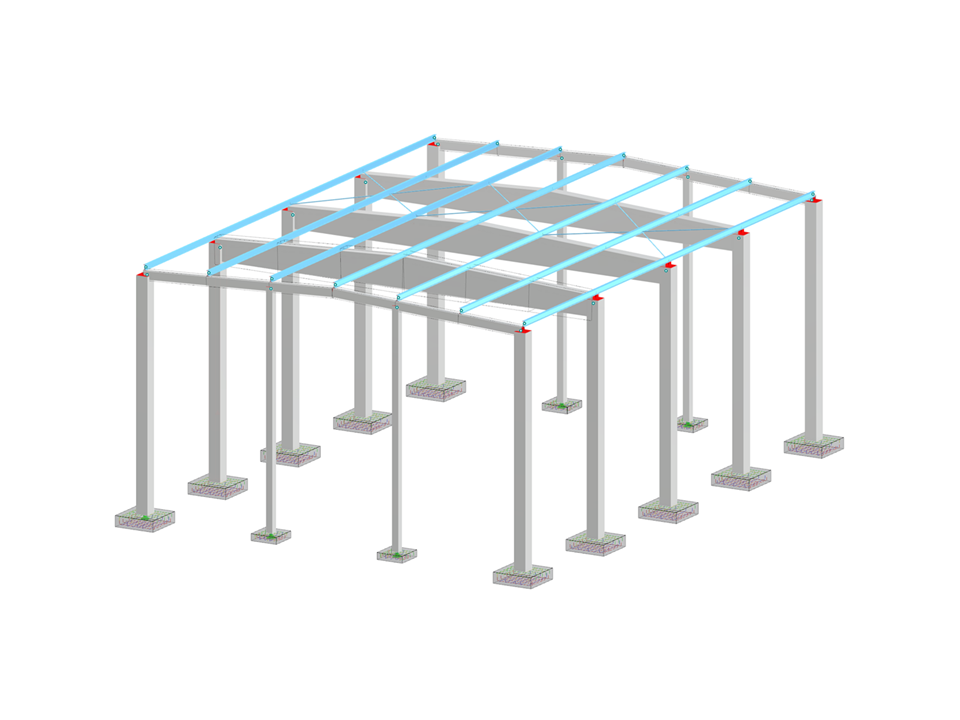

This model represents a concrete hall incorporating isolated reinforced concrete foundations beneath each column. It details the reinforcement layout applied to every footing to ensure optimal load distribution and durability. The design highlights precise reinforcement detailing that facilitates efficient load transfer analysis and enhances the overall foundation system performance.
Concrete Hall with Isolated Footings
| Number of Nodes | 49 |
| Number of Lines | 78 |
| Number of Members | 78 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 41 |
| Number of Result Combinations | 3 |
| Total Weight | 82.952 tons |
| Dimensions (Metric) | 15.000 x 8.875 x 20.000 m |
| Dimensions (Imperial) | 49.21 x 29.12 x 65.62 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
