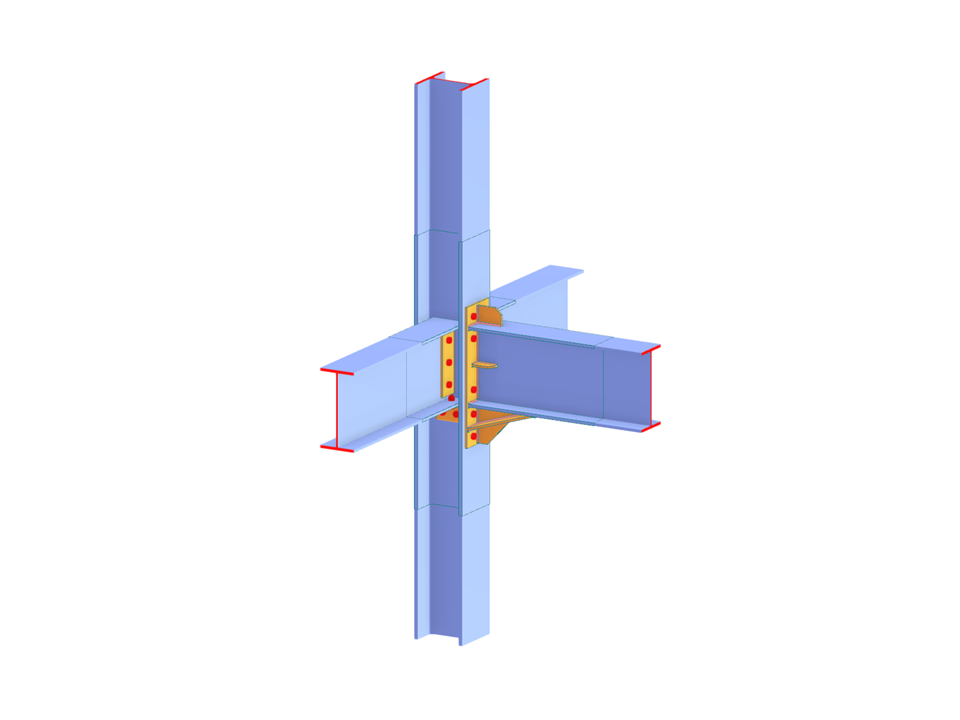

A rigid steel joint with integrated ribs improves load transfer and increases stability. The precise placement of the rib reinforcement optimizes the flexural rigidity and reduces deformation when subjected to a load. The structure is based on current standards and allows for a reliable estimation of the connection properties.
Model Used in
Steel Joint with Ribs
| Anzahl Knoten | 6 |
| Anzahl Linien | 5 |
| Anzahl Stäbe | 5 |
| Anzahl Flächen | 0 |
| Anzahl Volumenkörper | 0 |
| Anzahl Lastfälle | 6 |
| Anzahl Lastkombinationen | 12 |
| Anzahl Ergebniskombinationen | 0 |
| Gesamtgewicht | 0,208 t |
| Abmessungen (metrisch) | 1,000 x 2,500 x 2,000 m |
| Abmessungen (imperial) | 3.28 x 8.2 x 6.56 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
