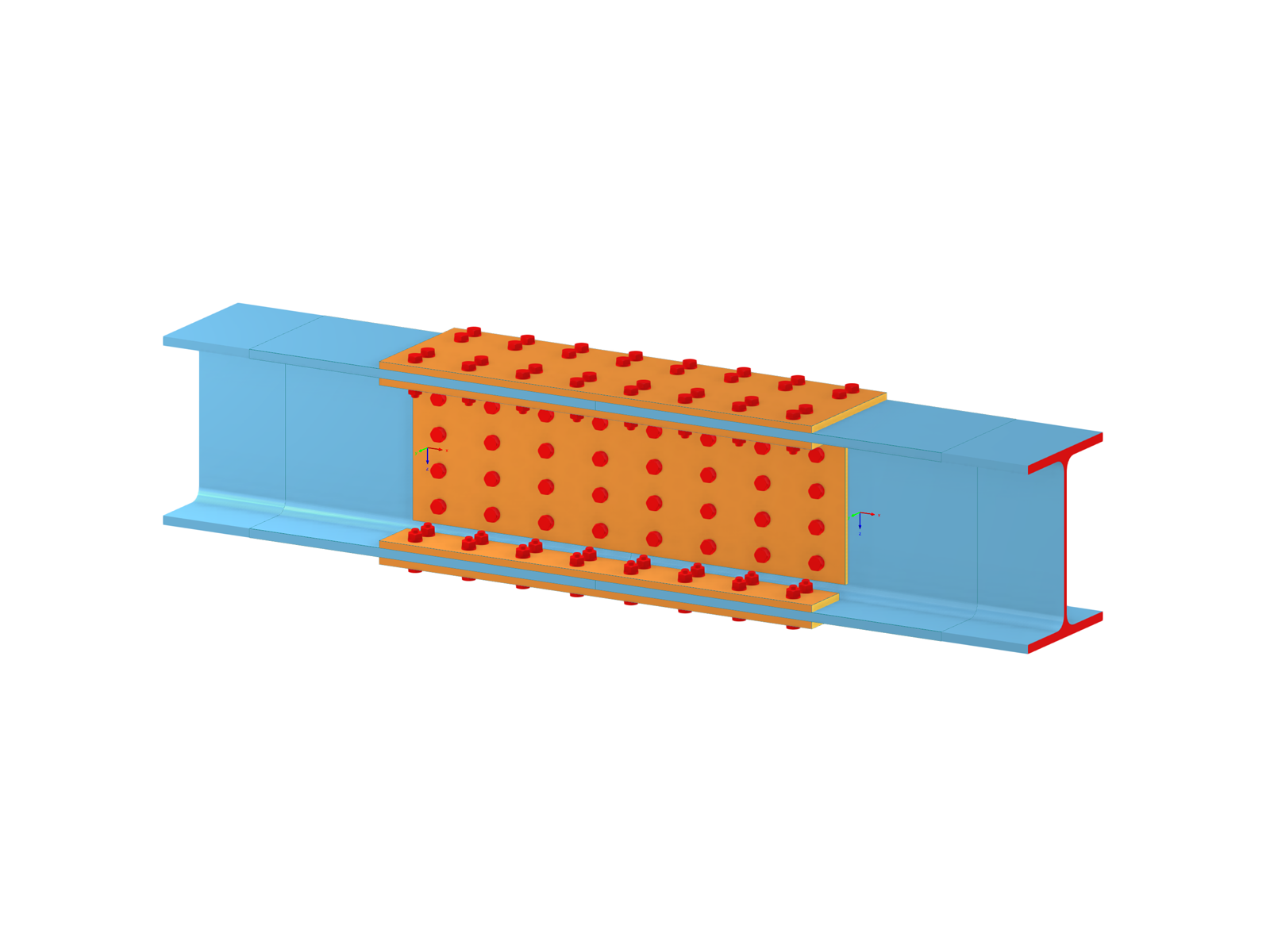

The model shows a precisely designed, bolted butt strap joint that serves as an innovative type of connection. It demonstrates the use of modern bolted connections for secure force transmission between structural elements and takes into account optimized material properties and detailed connection technology.
Model Used in
Bolted Splice Plate Connection
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.250 t |
| Dimensions (Metric) | 2.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
