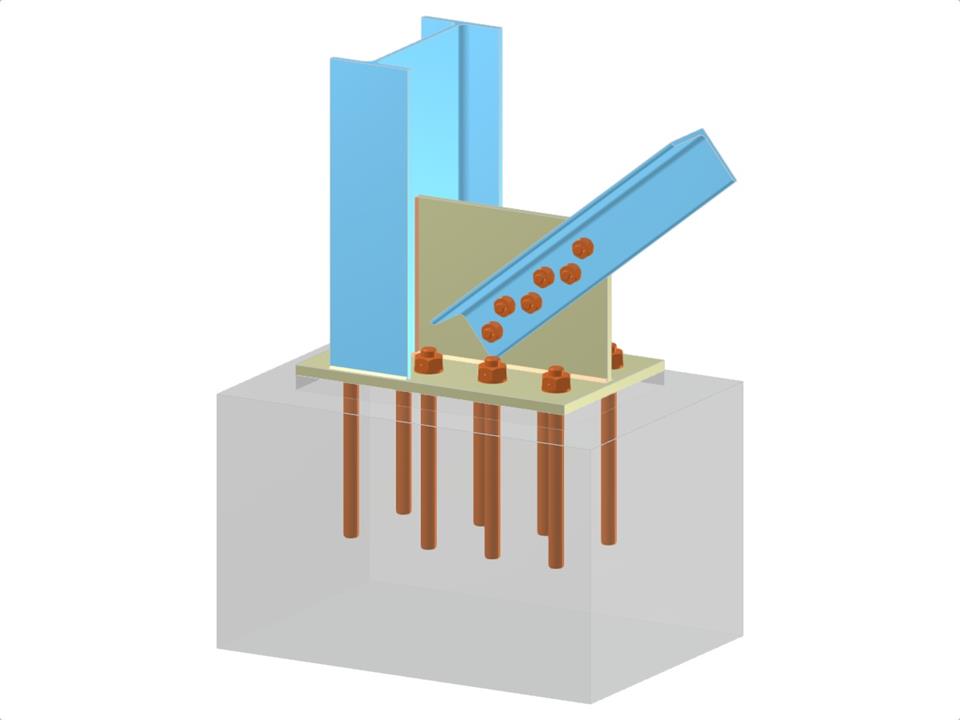

This model features a steel column base connection using an I-profile column. It includes a diagonal of L-profile of vertical bracing connected to the column web via gusset plate and a base plate. The design also incorporates effective anchoring techniques for enhanced stability.
Column Base with Gusset Plate and Bolted Diagonal Connection
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.080 tons |
| Dimensions (Metric) | 1,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
