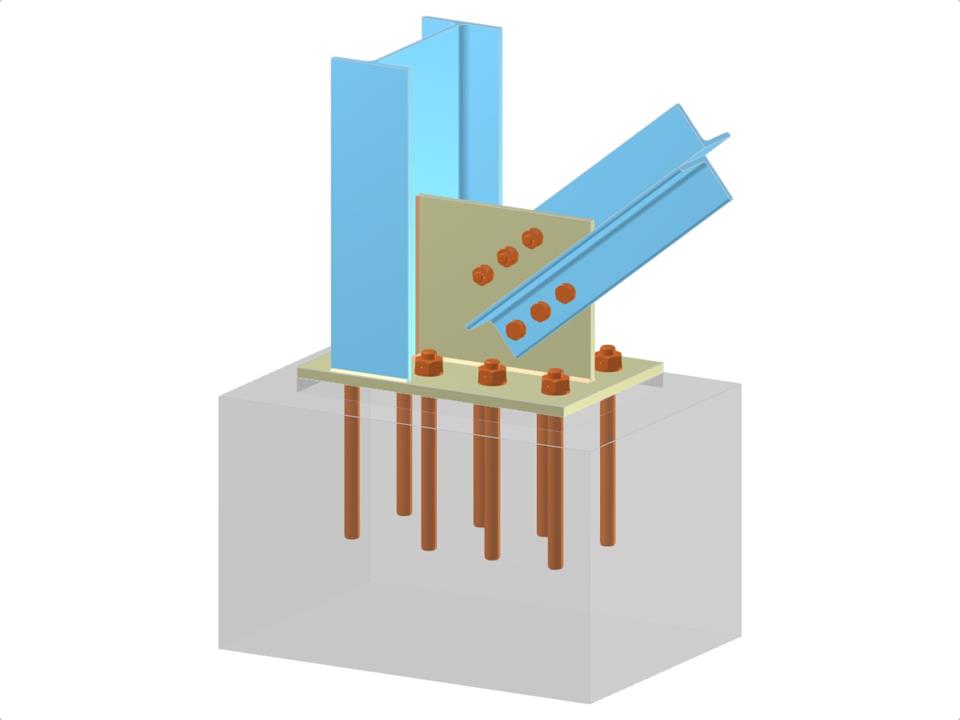

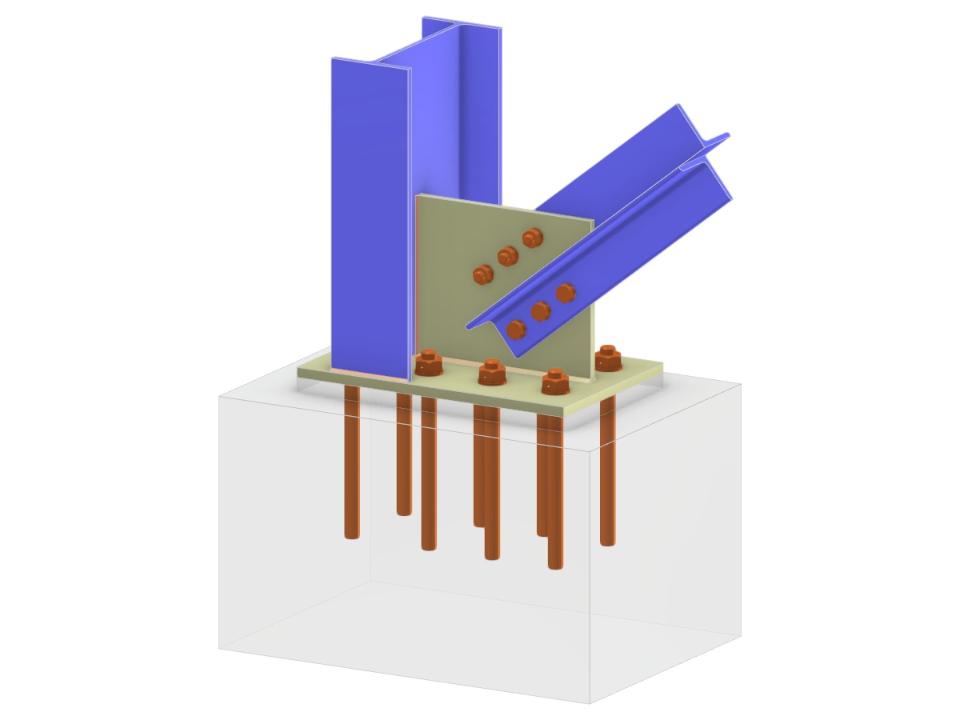

This model features a structural steel column base designed with an I-profile. It includes a diagonal member formed by two L-shaped sections connected to the column web. The assembly is supported by a base plate and includes a gusset plate, providing stability and strength. The integration of bolted diagonal connection and effective anchoring ensures secure load transfer.
Column Base with Gusset Plate and Bolted Diagonal Connection
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.096 tons |
| Dimensions (Metric) | 1,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
