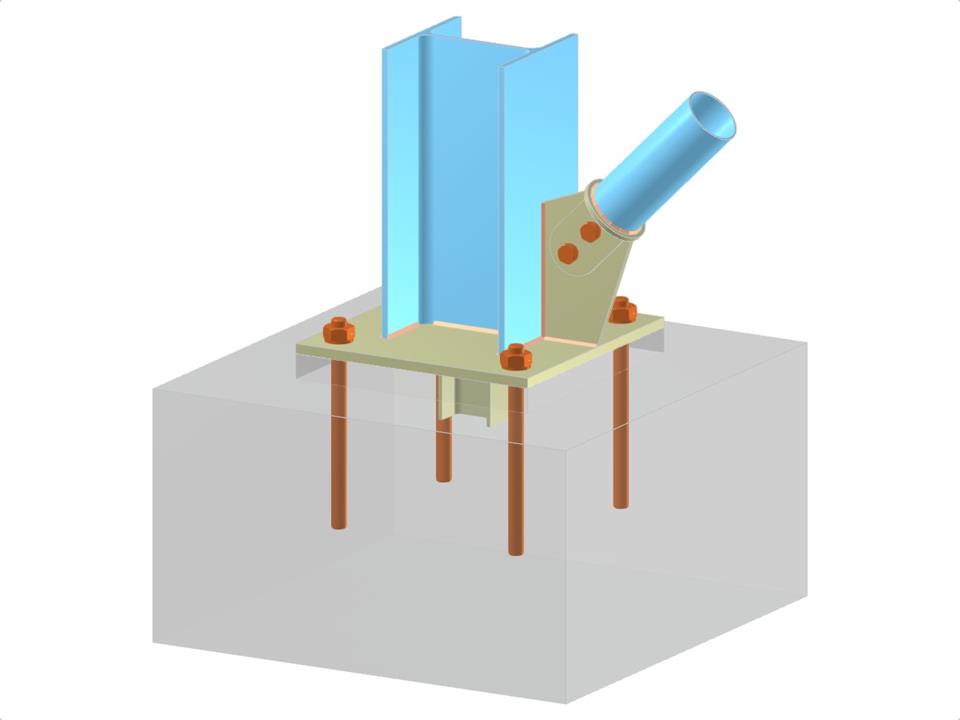

This model features a comprehensive column base connection consisting of various structural components including an I-profile column, a diagonal CHS connected to the column flange, a base plate, a shear lug, a gusset plate, a cap plate, and a tongue plate. Additionally, it includes a bolted diagonal connection and anchoring elements to ensure the stability and integrity of the structure.
Column Base with Gusset Plate with Shear Lug and Bolted Diagonal Connection
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.092 tons |
| Dimensions (Metric) | 1,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
