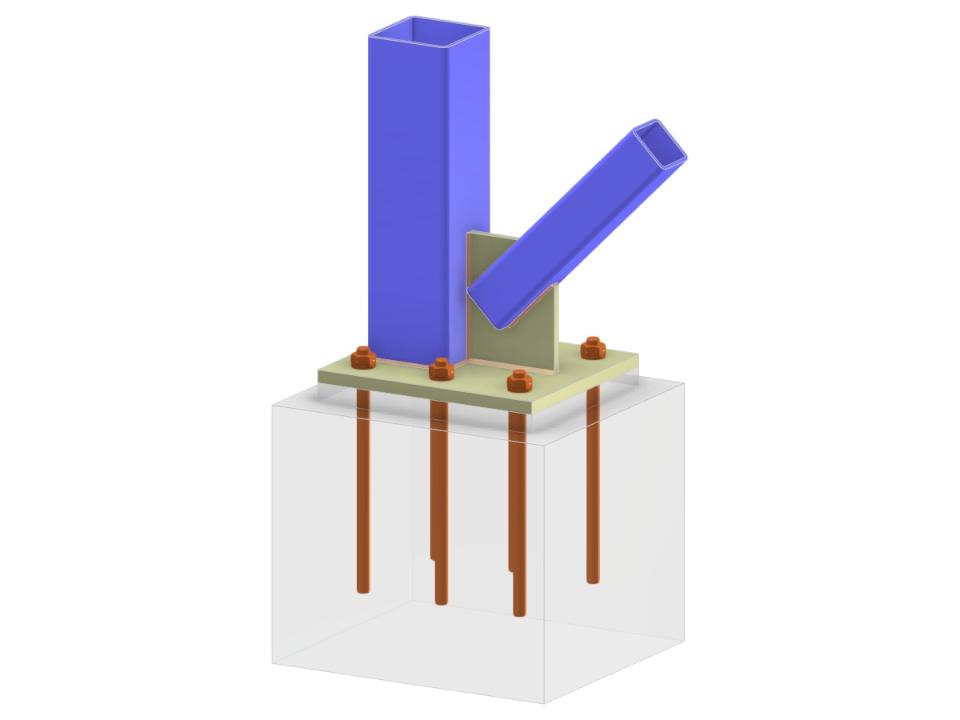

This model illustrates a structural setup involving a column base connected to a base plate and reinforced with a through-going stiffener. The configuration includes a rectangular hollow section column with diagonal RHS elements, forming a welded diagonal connection for increased stability. The anchoring mechanism ensures secure groundwork attachment.
Column Base With Stiffener and Welded Diagonal Connection
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.040 tons |
| Dimensions (Metric) | 1,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
