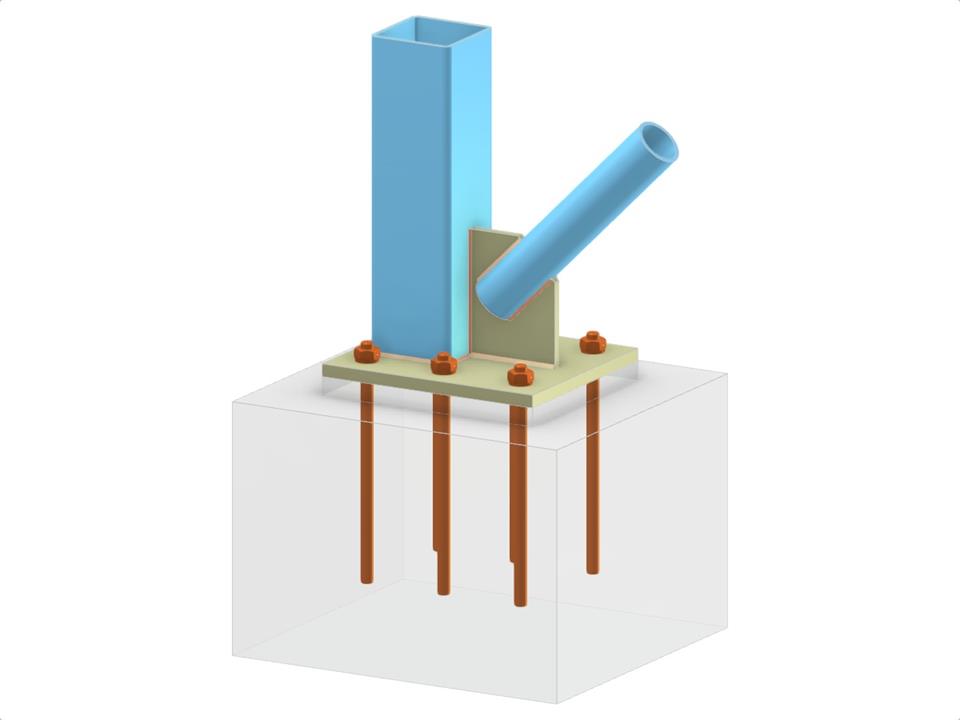

This model features a complex structural node combining a column base with a rectangular hollow section (RHS), a diagonal circular hollow section (CHS), a robust base plate, and through-going stiffeners. It highlights a welded diagonal connection and advanced anchoring techniques, essential for stability in construction. The model showcases intricate welding details that ensure the integrity and durability of the connection. Such configurations are critical for structural engineers seeking reliable joint solutions.
Column Base with Stiffener and Welded Diagonal Connection
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.037 tons |
| Dimensions (Metric) | 1.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
