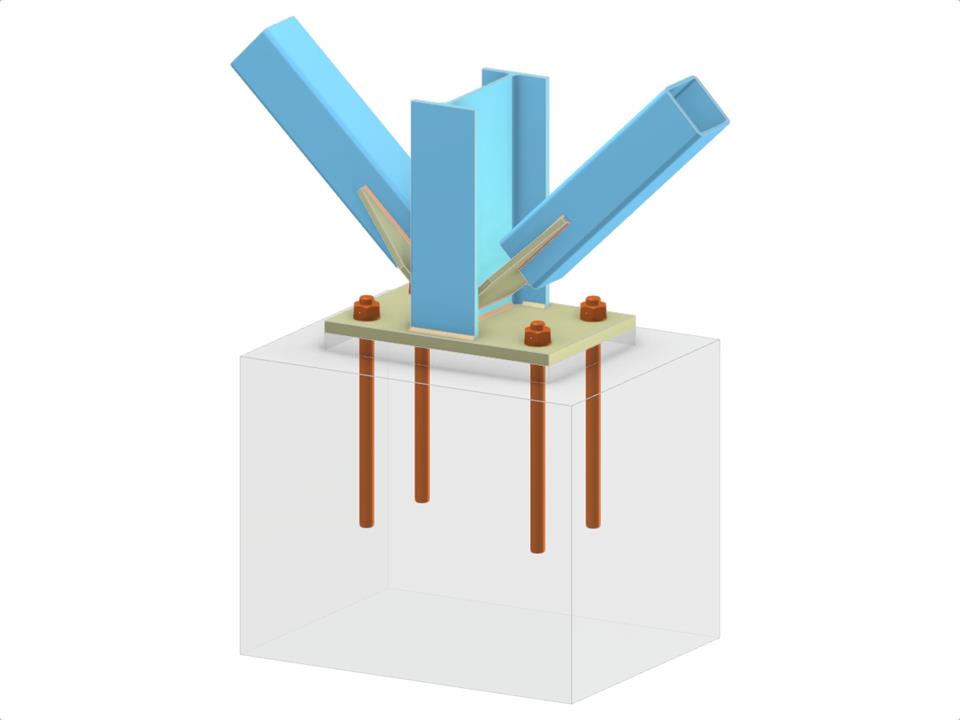

This model features a column base consisting of an I-profile column, two diagonals using RHS connected to the column web, a base plate, and a gusset plate. A welded diagonal connection provides additional stability, while the structure is secured through anchoring mechanisms. Such configurations are crucial in ensuring stability and resilience in structural designs.
Column Base with Welded Diagonal Connections
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.071 tons |
| Dimensions (Metric) | 2.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
