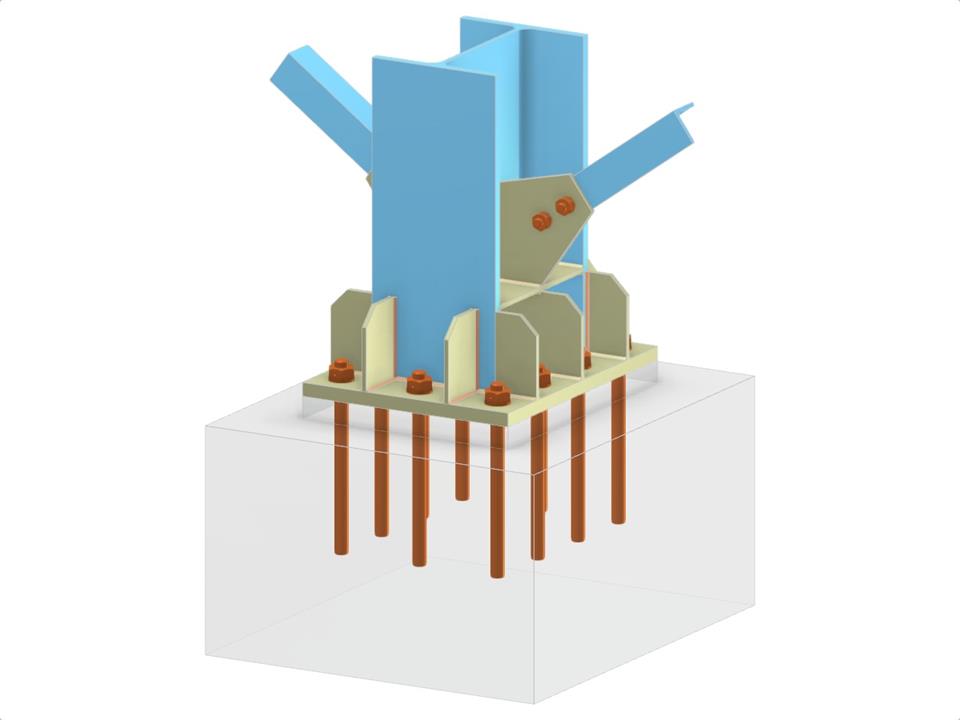

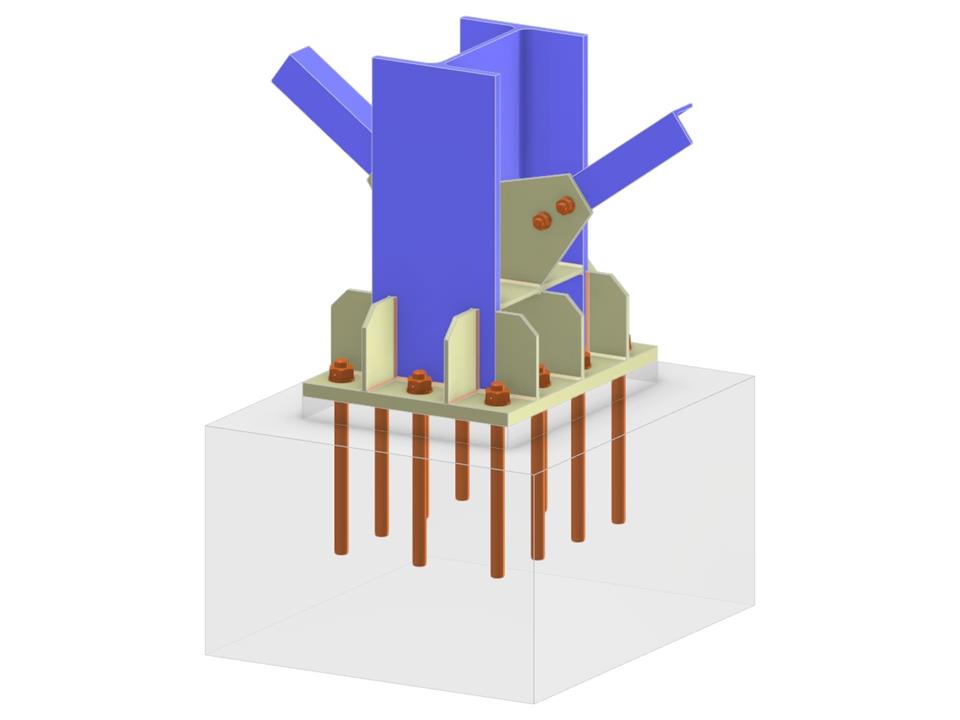

The model features a column base utilizing an I-profile with two L-profile diagonals connected to the column web. It includes a base plate, a gusset plate, stiffener, and rib, emphasizing a bolted diagonal connection and secure anchoring. This structural setup ensures stability and robust load distribution.
Column Base with Two Bolted Diagonals of Vertical Bracing
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.149 tons |
| Dimensions (Metric) | 2.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
