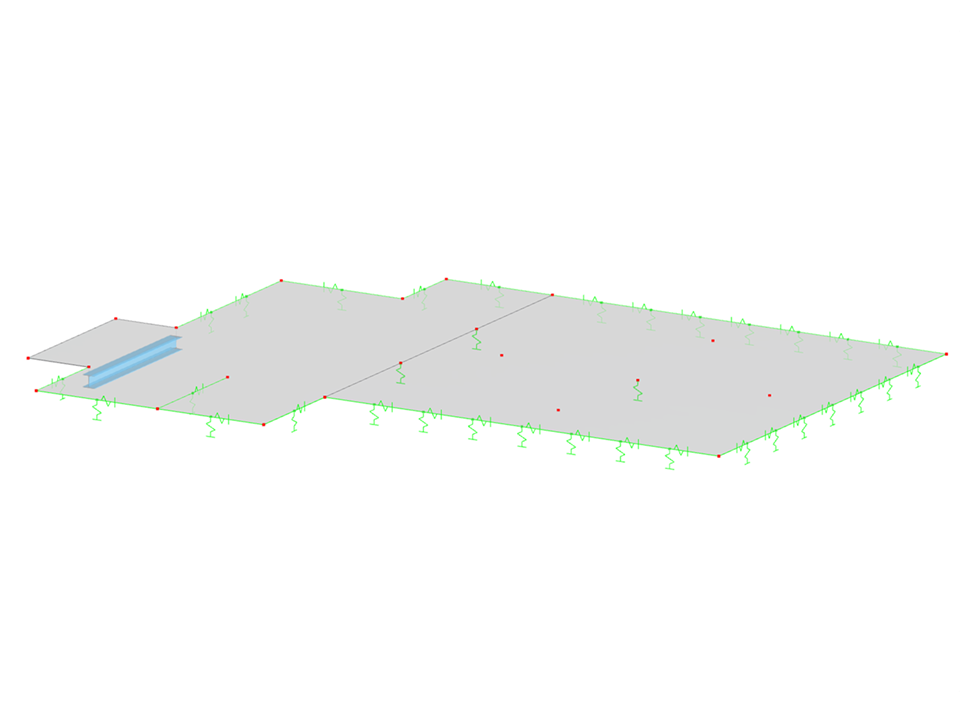

This model shows the structure of a reinforced concrete slab reinforced with a downstand beam and an attached balcony. Such structures require precise calculations to meet the structural requirements and load distributions during the construction process. The use of downstand beams provides an efficient solution for reinforcing and stabilizing the entire slab structure, especially for balconies.
Reinforced Concrete Slab with Downstand Beam and Balcony
| Number of Nodes | 22 |
| Number of Lines | 17 |
| Number of Members | 1 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 0 |
| Total Weight | 44.018 t |
| Dimensions (Metric) | 11.250 x 0.000 x 8.250 m |
| Dimensions (Imperial) | 36.91 x 0 x 27.07 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
