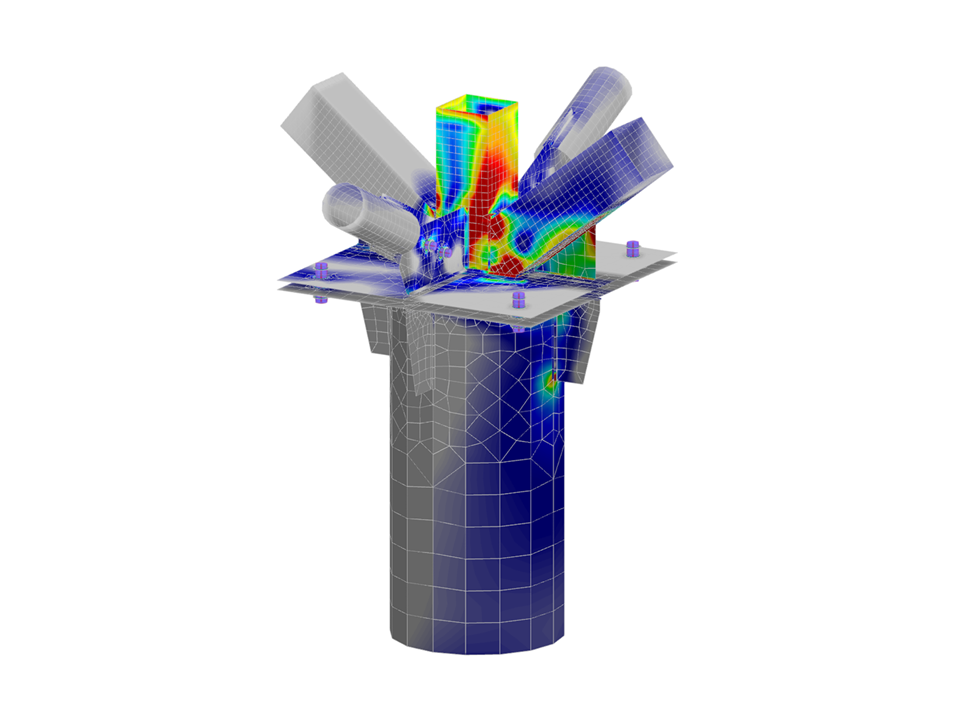

This RFEM model represents a steel bolted connection and includes transferred internal forces from the roofing structure model. The model demonstrates how connections handle complex force distributions in steel constructions. RFEM's capability in integrating and analyzing connected structural components simplifies detailed engineering tasks.
Steel Bolted Connection Model
| Number of Nodes | 1424 |
| Number of Lines | 1390 |
| Number of Members | 544 |
| Number of Surfaces | 178 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.116 tons |
| Dimensions (Metric) | 0.644 x 0.846 x 0.856 m |
| Dimensions (Imperial) | 2.11 x 2.78 x 2.81 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
