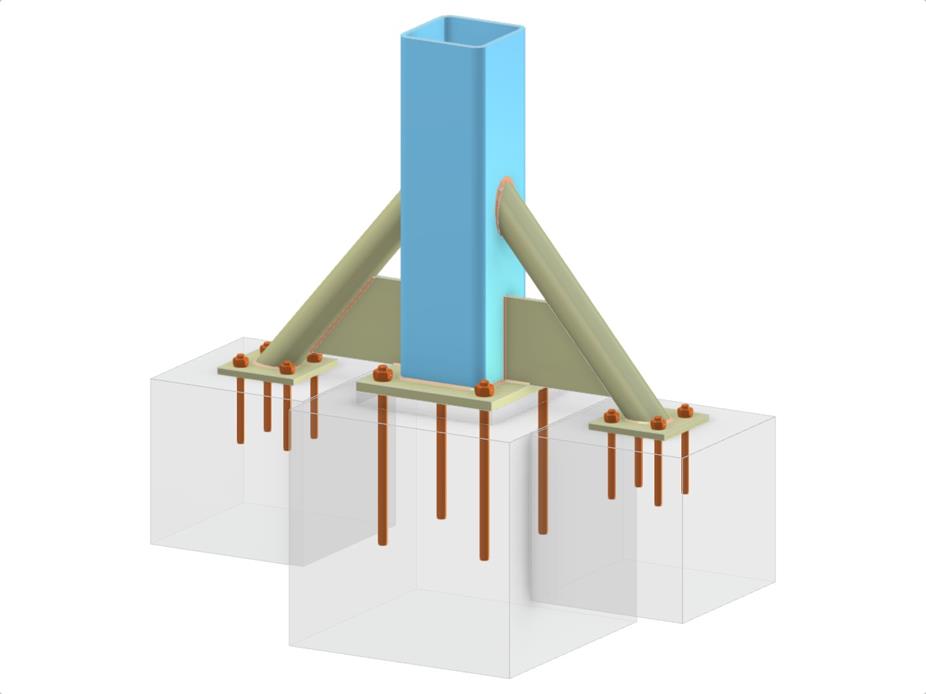

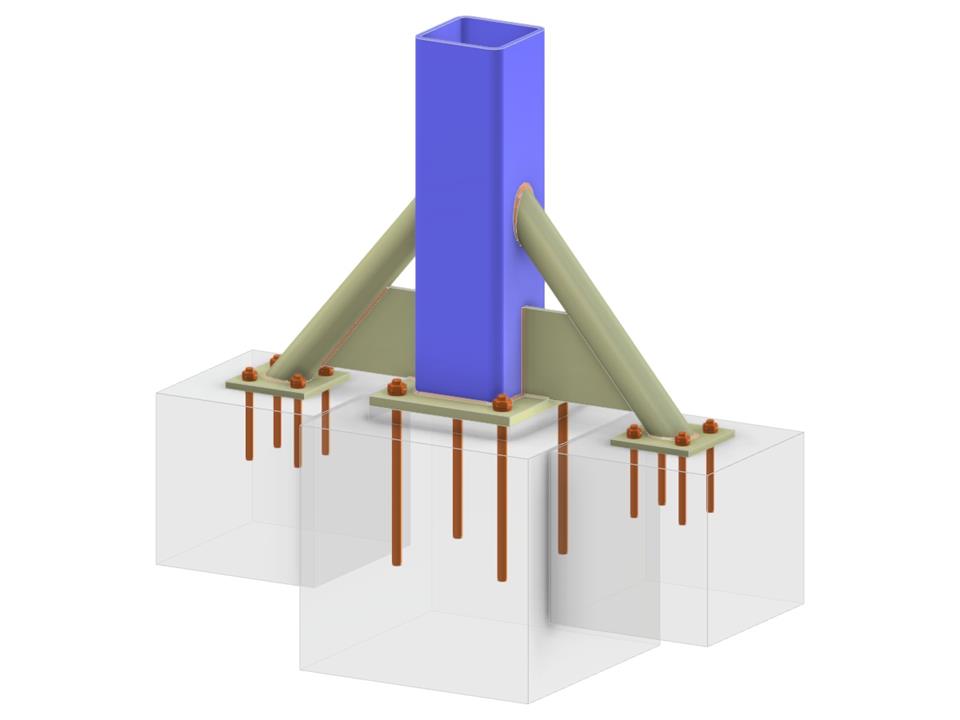

This model features a column base connection designed with a rectangular hollow section (RHS) for the column, complemented by two circular hollow section (CHS) braces. The base plate integrates ribs for enhanced stability, and the entire structure is securely anchored for robust support. This setup exemplifies advanced connection design in structural engineering.
Column Base with Two Braces
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.057 tons |
| Dimensions (Metric) | 0.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
