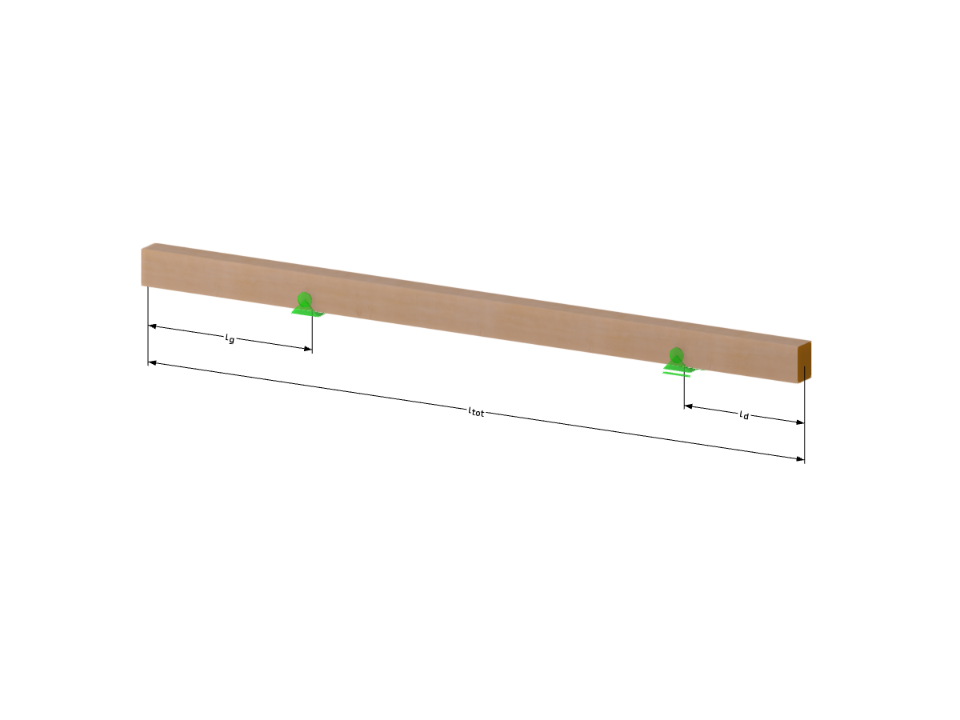

Timber beam configured for advanced optimization with the Optimization & Cost and CO2 Emissions Estimation add-on. The defined variables allow the position of the supports and the dimensions of the section to be optimized according to the applied loads, in accordance with Eurocode 5.
Parametric Timber Beam for Optimization
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 5 |
| Number of Result Combinations | 0 |
| Total Weight | 0,166 t |
| Dimensions (Metric) | 6,000 x 0,000 x 0,000 m |
| Dimensions (Imperial) | 19.69 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
