This model represents a reinforced concrete slab designed for analysis with RFEM 6, a finite element analysis software program. This type of structure is often used for its strength and durability, making it ideal for many construction applications. Explore the features and design capabilities of this slab by downloading the model directly for immediate use in RFEM 6.

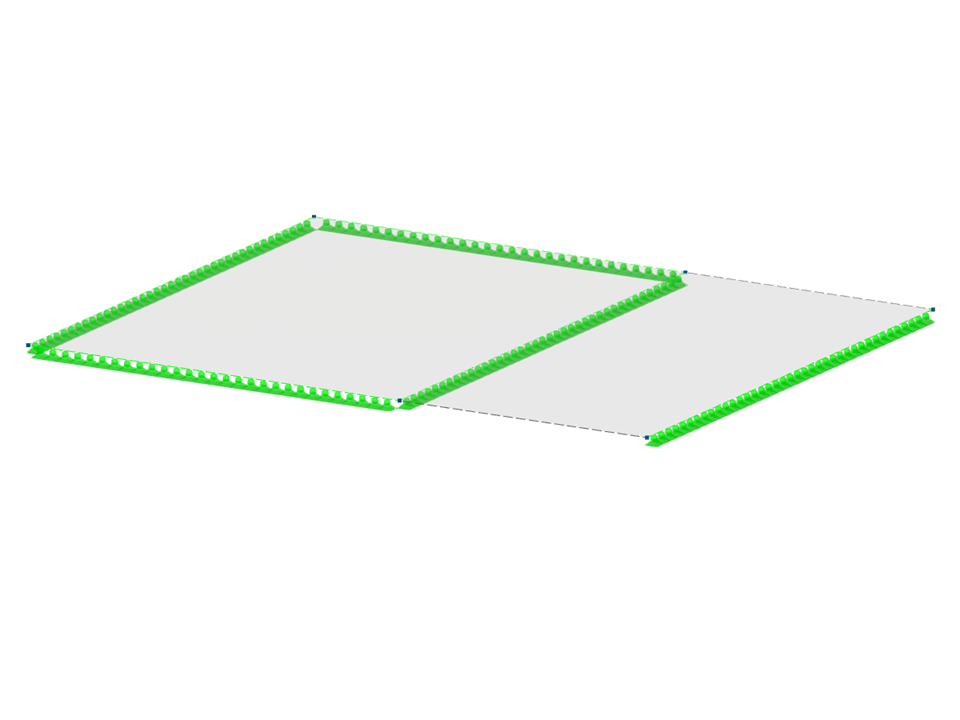

Reinforced Concrete Slab
| Number of Nodes | 6 |
| Number of Lines | 7 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 16 |
| Number of Result Combinations | 0 |
| Total Weight | 40,000 t |
| Dimensions (Metric) | 10,000 x 0,000 x 8,000 m |
| Dimensions (Imperial) | 32.81 x 0 x 26.25 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
