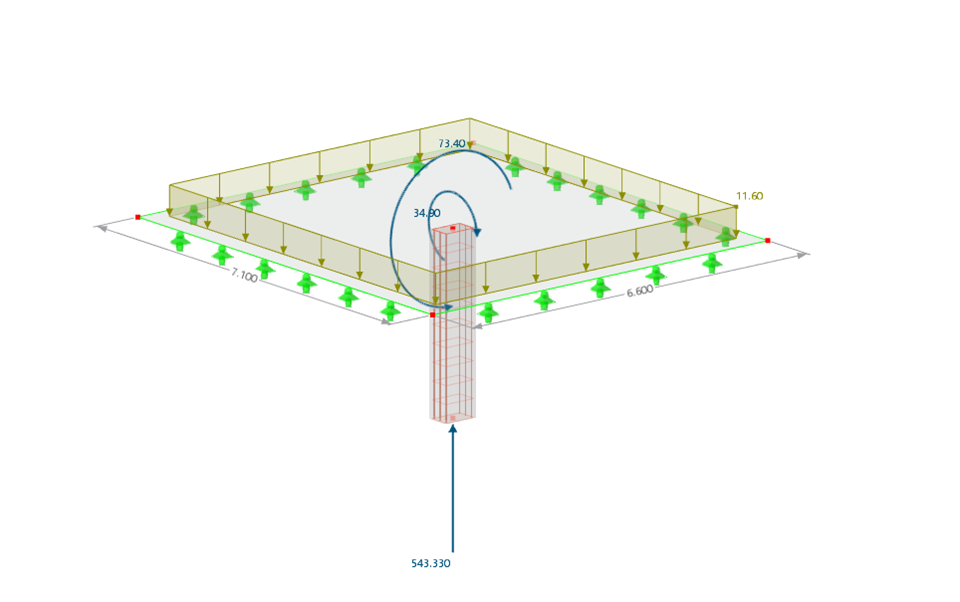

This model includes a column connected to a plate and presents the design according to CSA A23.3. It specifically addresses the punching shear design of plates, which is particularly relevant for engineers working in the field of concrete structures.
Verification Example 9961 | Punching Design According to CSA A23.3
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 1 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 28,050 t |
| Dimensions (Metric) | 6,000 x 3,000 x 7,000 m |
| Dimensions (Imperial) | 19.69 x 9.84 x 22.97 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
