The new building for the Faculty of Health Sciences at the Public University of Navarra consists of four floors, each measuring 2,800 m², using cross-laminated timber (CLT) slabs made of spruce with a thickness of 180 mm and a strength class of C24. The structure is supported by glued laminated timber beams and columns with GL24h and GL28c strength classes, resting on a reinforced concrete base that forms the ground floor and basement.

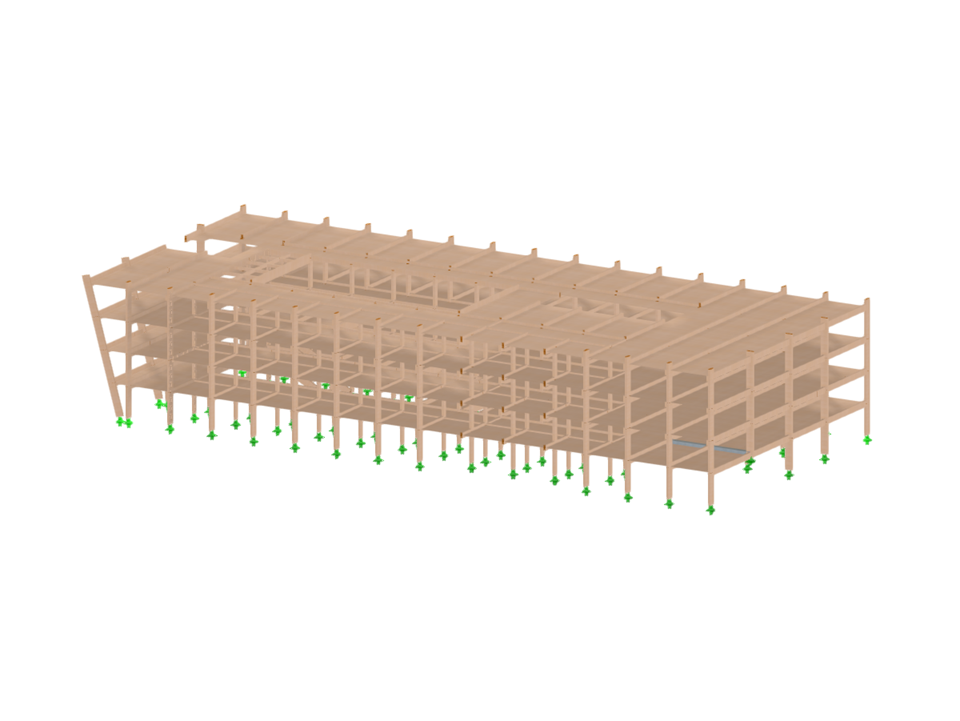

New Timber Building of Health Sciences Faculty at UPNA, Spain
No Download Possible
Customer Project / View Only
| Number of Nodes | 784 |
| Number of Lines | 1389 |
| Number of Members | 920 |
| Number of Surfaces | 312 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 72 |
| Number of Result Combinations | 0 |
| Total Weight | 1152,808 t |
| Dimensions (Metric) | 83,347 x 19,820 x 36,310 m |
| Dimensions (Imperial) | 273.45 x 65.03 x 119.13 feet |
