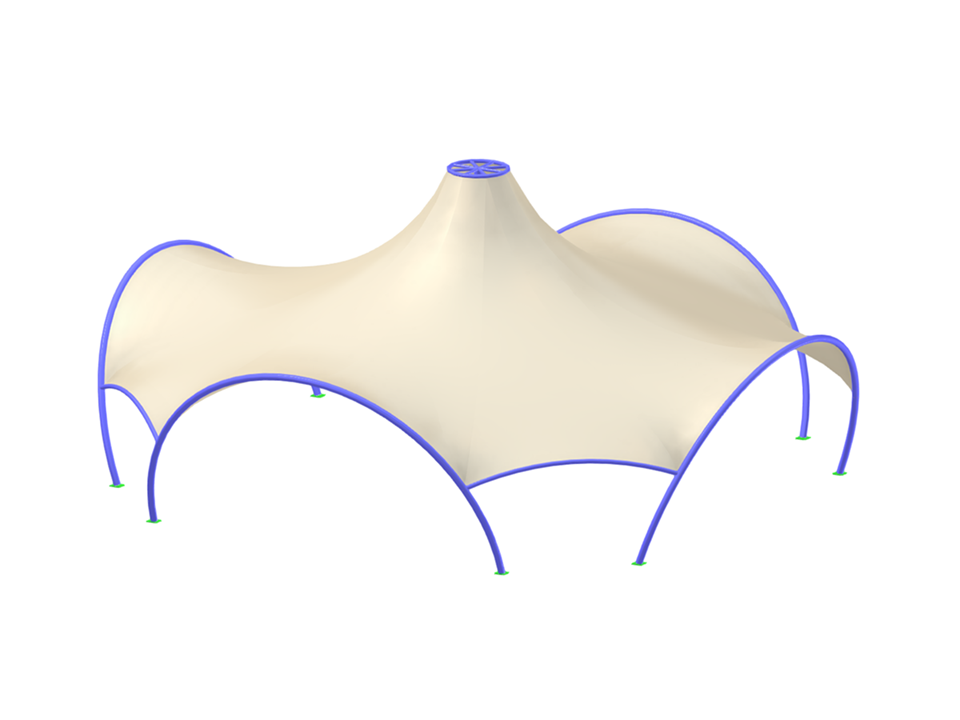

This model features a textile membrane structure supported by a steel frame, utilizing the Form-Finding add-on in RFEM 6. The add-on aids in determining the optimal shape for the membrane under pre-defined conditions, enhancing structural integrity and performance.
Textile Membrane Structure on Steel Frame
| Number of Nodes | 34 |
| Number of Lines | 49 |
| Number of Members | 37 |
| Number of Surfaces | 12 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.160 tons |
| Dimensions (Metric) | 18.420 x 8.000 x 18.420 m |
| Dimensions (Imperial) | 60.43 x 26.25 x 60.43 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
