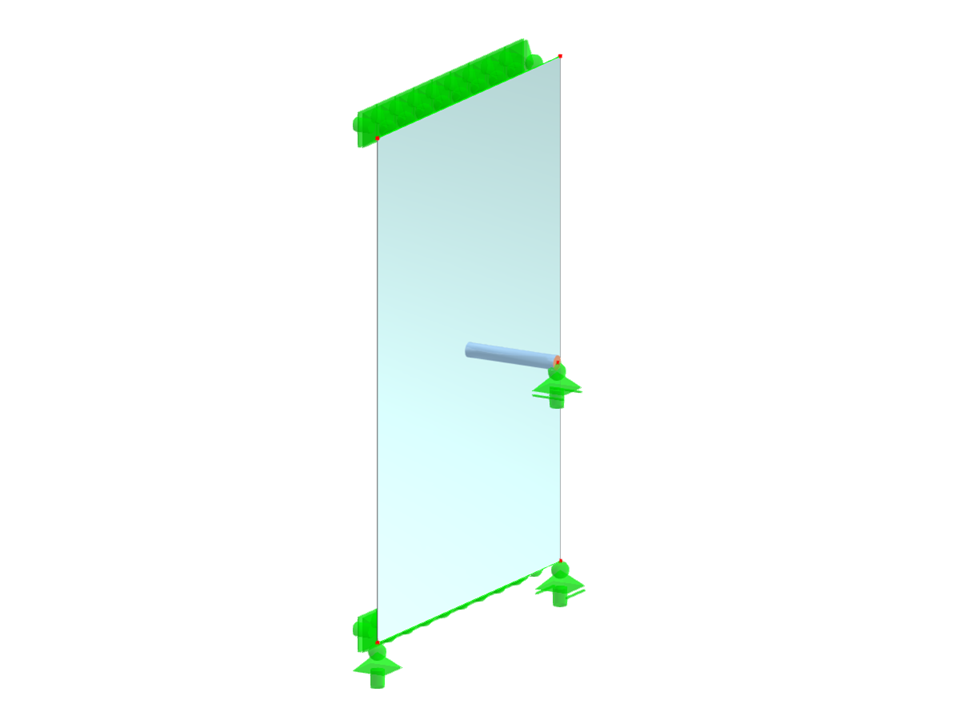

This example model shows a glass wall analyzed for the effect of a pendulum impact. It can be downloaded and analyzed using the finite element analysis software RFEM 6 that allows you to simulate complex structures and check their behavior under various loads, including dynamic impacts on materials like glass. This application demonstrates how to design the strength of a glass wall in impact scenarios. Users can adjust the model parameters to explore different load and stress scenarios.
Glass Wall
| Number of Nodes | 6 |
| Number of Lines | 5 |
| Number of Members | 1 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 3 |
| Number of Result Combinations | 0 |
| Total Weight | 0,014 t |
| Dimensions (Metric) | 0,195 x 1,000 x 0,700 m |
| Dimensions (Imperial) | 0.64 x 3.28 x 2.3 feet |
