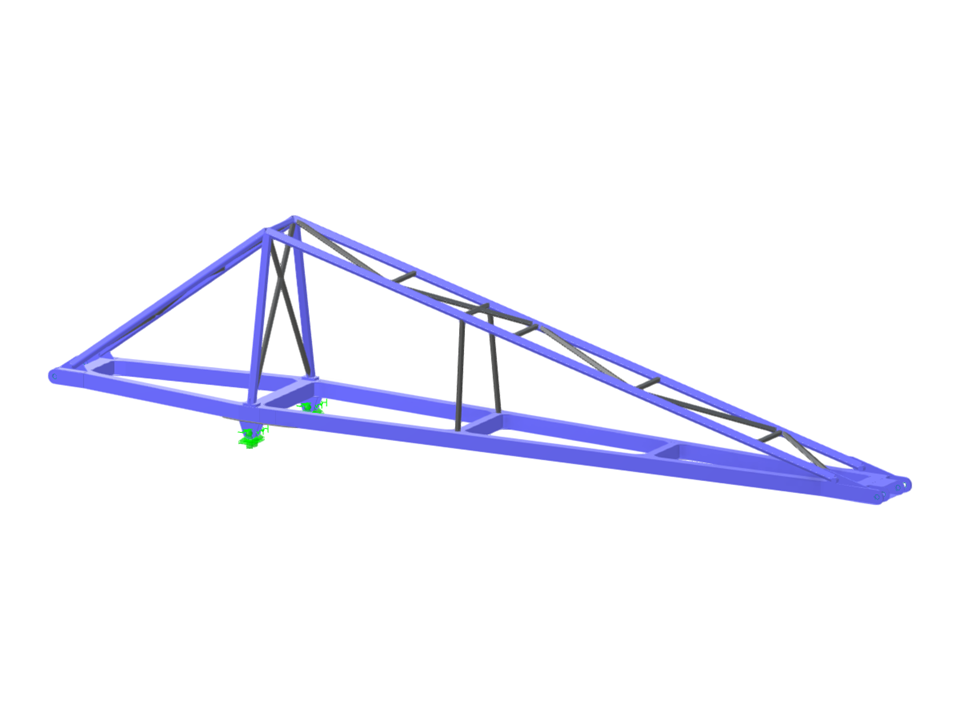

The fly jib of a crane is a crucial component that enhances the lifting capabilities by extending the horizontal reach. This model showcases the design and structural analysis of a crane's fly jib. It involves evaluating factors such as load distribution and stability under various operating conditions. The model is developed using advanced structural engineering tools for precision and reliability.
Fly Jib | Crane
No Download Possible
Customer Project / View Only
| Number of Nodes | 461 |
| Number of Lines | 622 |
| Number of Members | 26 |
| Number of Surfaces | 181 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 25.021 tons |
| Dimensions (Metric) | 37.837 x 6.870 x 32.026 m |
| Dimensions (Imperial) | 124.14 x 22.54 x 105.07 feet |
