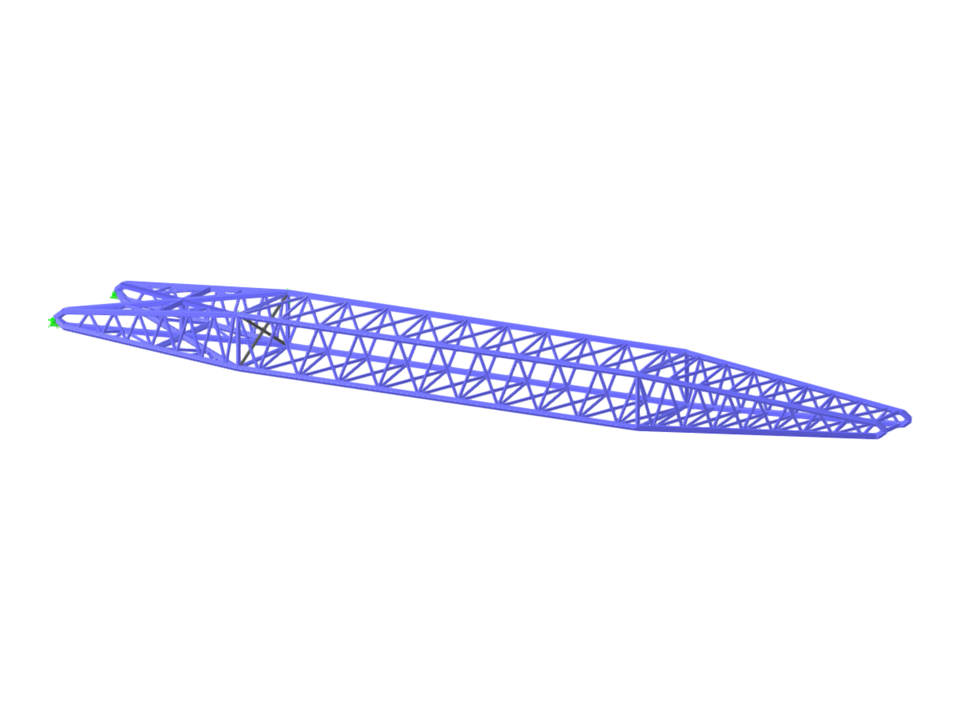

This model represents the main jib of a crane constructed using tubular elements. It showcases a structural design focusing on optimizing the strength and stability required for lifting operations. The tubular construction ensures reduced weight while maintaining high load-bearing capacity. Such designs are pivotal in efficient material handling in construction and industrial projects.
Main Jib of Crane
No Download Possible
Customer Project / View Only
| Number of Nodes | 151 |
| Number of Lines | 243 |
| Number of Members | 243 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 25.133 tons |
| Dimensions (Metric) | 42.850 x 2.500 x 5.600 m |
| Dimensions (Imperial) | 140.58 x 8.2 x 18.37 feet |
