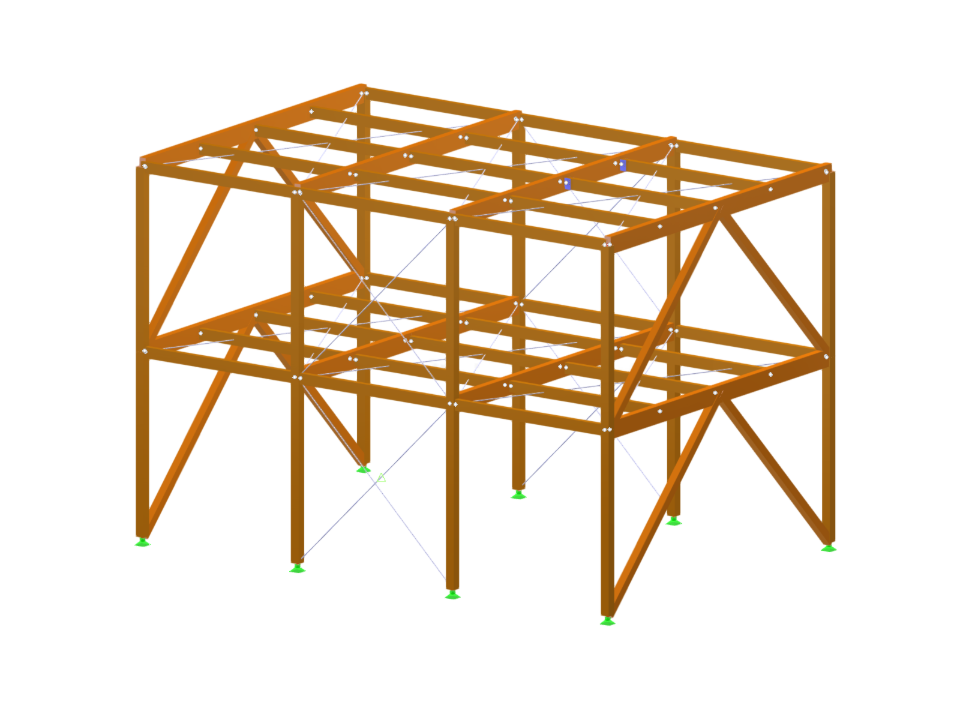

This model shows a detailed timber structure with realistic connection components, making it ideal for analyzing and optimizing timber connections. The use of advanced calculation methods allows for a precise evaluation of structural integrity and provides engineers with valuable insights for their projects. Specific modeling techniques and the linking of nodal points enhance design accuracy.
Model Used in
Timber Structure with Connection Components
| Number of Nodes | 52 |
| Number of Lines | 106 |
| Number of Members | 85 |
| Number of Surfaces | 6 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 15 |
| Number of Result Combinations | 0 |
| Total Weight | 4.849 t |
| Dimensions (Metric) | 8.000 x 8.000 x 12.000 m |
| Dimensions (Imperial) | 26.25 x 26.25 x 39.37 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
