This model represents a gravity retaining wall with soil layers on both sides, created as a solid structure with fully parametric dimensions. The geometry allows for flexible adjustment of wall and soil parameters to study different retaining scenarios. It is suitable for finite element analysis in RFEM, where the interaction between the wall and the surrounding soil can be evaluated.

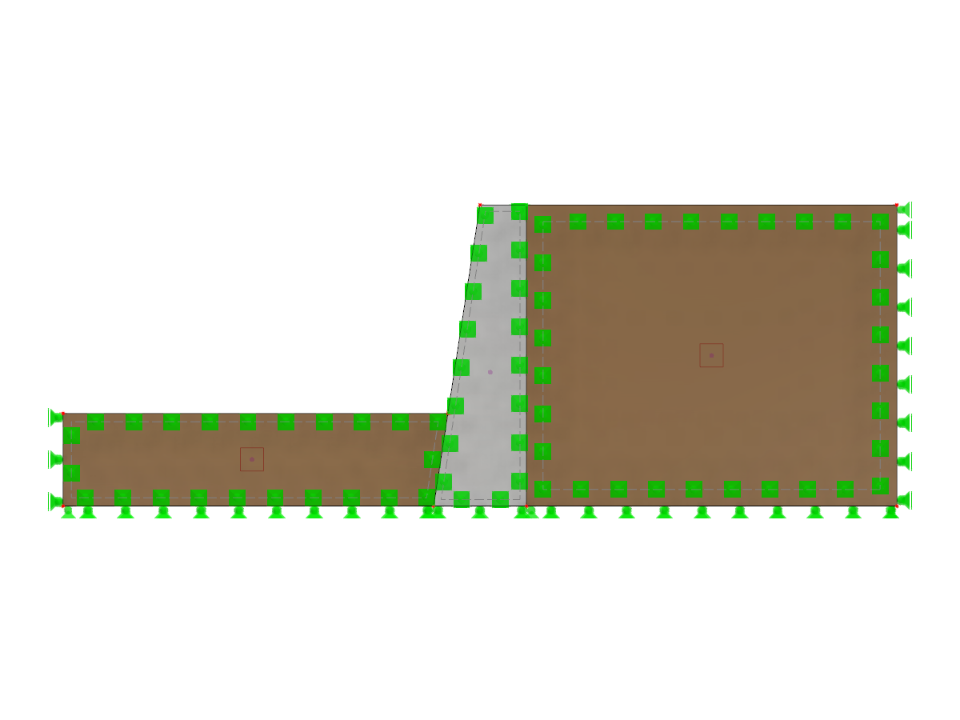

Gravity Retaining Wall with Parametric Soil Solid
| Block parameters editable dynamically | |
| Number of Nodes | 18 |
| Number of Lines | 31 |
| Number of Members | 0 |
| Number of Surfaces | 17 |
| Number of Solids | 3 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 162.621 tons |
| Dimensions (Metric) | 18.000 x 6.500 x 1.000 m |
| Dimensions (Imperial) | 59.06 x 21.33 x 3.28 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
