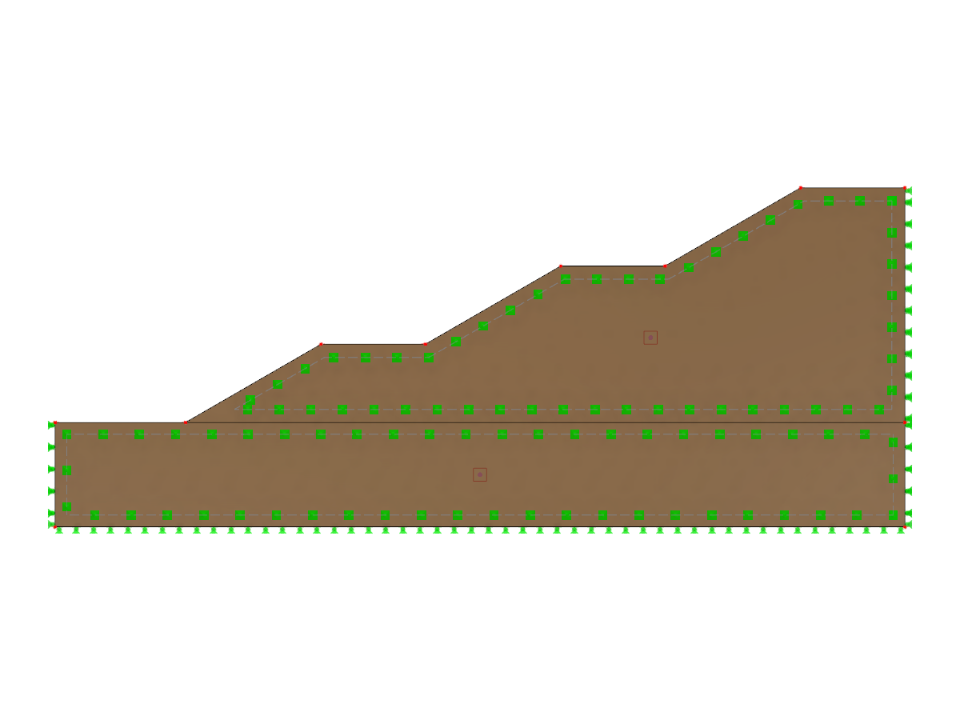

This solid model represents a benched slope with soil stratification, defined by parametric dimensions. It allows for flexible adjustment of the bench geometry and layer thicknesses. The model is suitable for geotechnical analysis and stability assessment of stepped slope profiles.
Benched Slope Soil
| Block parameters editable dynamically | |
| Number of Nodes | 22 |
| Number of Lines | 35 |
| Number of Members | 0 |
| Number of Surfaces | 16 |
| Number of Solids | 2 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 505.898 tons |
| Dimensions (Metric) | 32.588 x 13.000 x 1.000 m |
| Dimensions (Imperial) | 106.92 x 42.65 x 3.28 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
