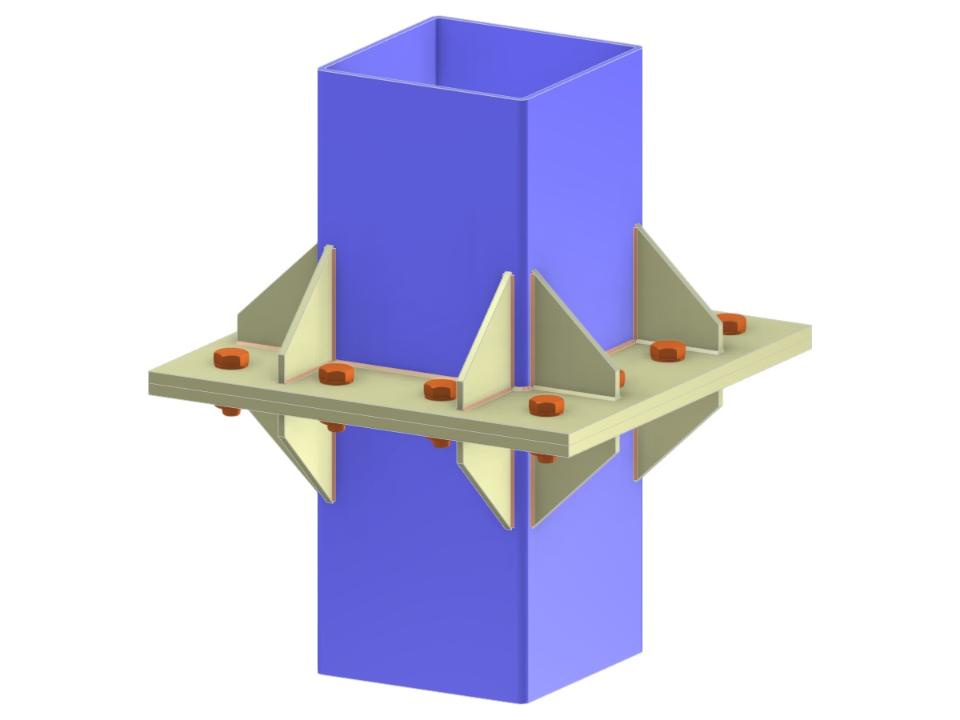

This model illustrates a column splice with a hollow cross-section (SHS), featuring an extended end plate connection. The assembly involves bolted joints with rib structures to enhance stability and load distribution. It's specifically designed for applications requiring reinforced integrity and precise engineering in structural connections.
Column Splice with Extended End Plate to Plate and Ribs
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 3 |
| Number of Result Combinations | 1 |
| Total Weight | 0.243 tons |
| Dimensions (Metric) | 0.000 x 2.000 x 0.000 m |
| Dimensions (Imperial) | 0 x 6.56 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
