Model to Download | Steel Structure of Sports Hall

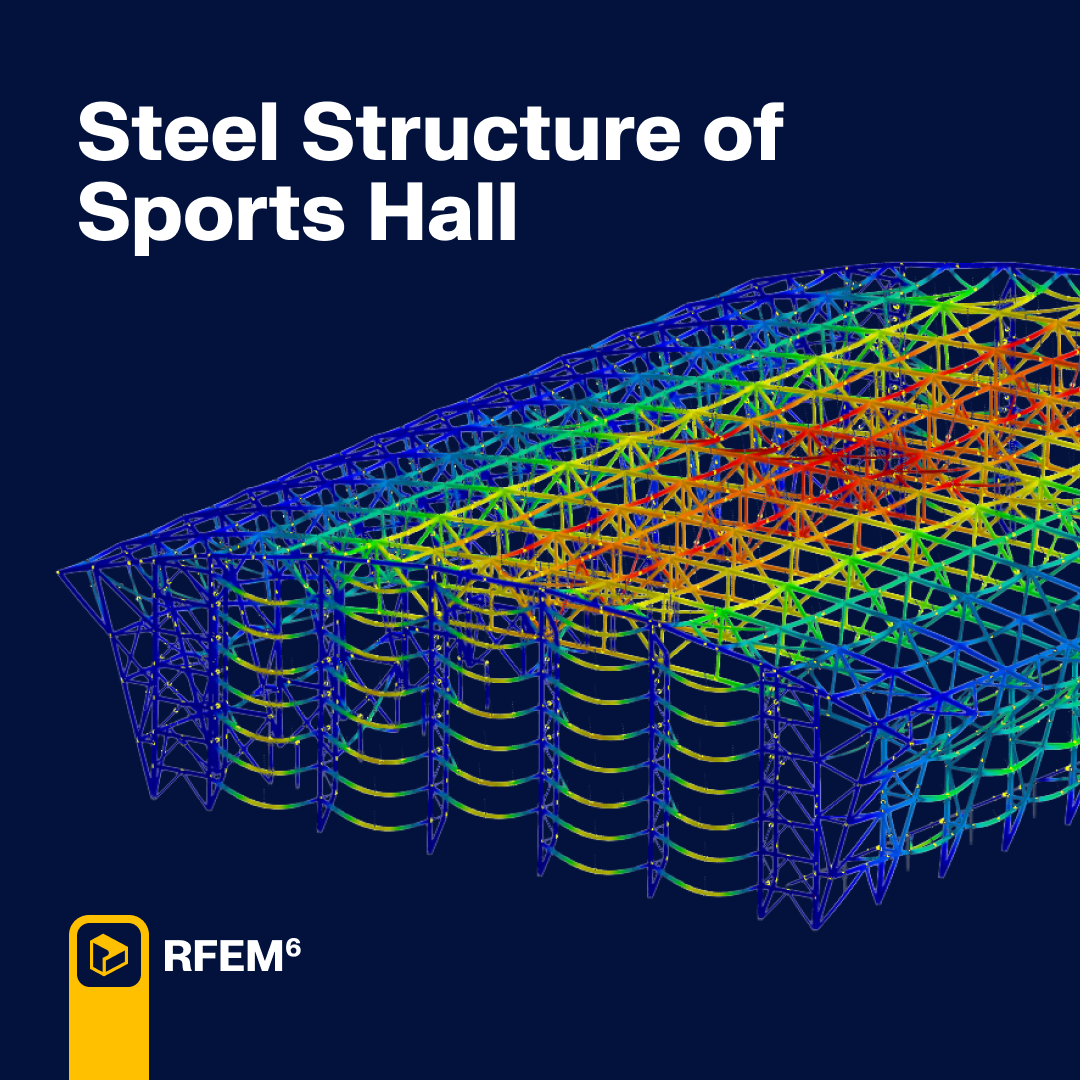

Graduation Thesis Spotlight: Design of Steel Structure for Sports Hall 🏗️✨

We’re excited to share an impressive graduation thesis by Bc. Radim Filip from the Brno University of Technology, Czech Republic. This project focuses on the design and analysis of a steel sports hall in the town of Letohrad, Ústí nad Orlicí region. 🇨🇿

Project Details:

🔹 Sports hall dimensions: 45.00 × 68.75 m
🔹 Includes grandstands for seated and standing spectators, a gallery, changing rooms, and a longitudinal corridor
🔹 Structural analysis and design of four variants of transverse ties, with multi-criteria evaluation to determine the optimal solution

Tools Used:

🔹 RFEM for structural analysis
🔹 Geo-Zone Tool for wind and snow load calculations

Deliverables:

🔹 Technical documentation
🔹 Visualizations showcasing the final design for the investor
🔹 This thesis showcases how Dlubal software supports efficient and accurate structural design, helping students and professionals optimize real-world construction projects.

👏 Congratulations to Bc. Radim Filip for this outstanding work and for demonstrating the practical application of modern engineering tools in innovative designs!



;
