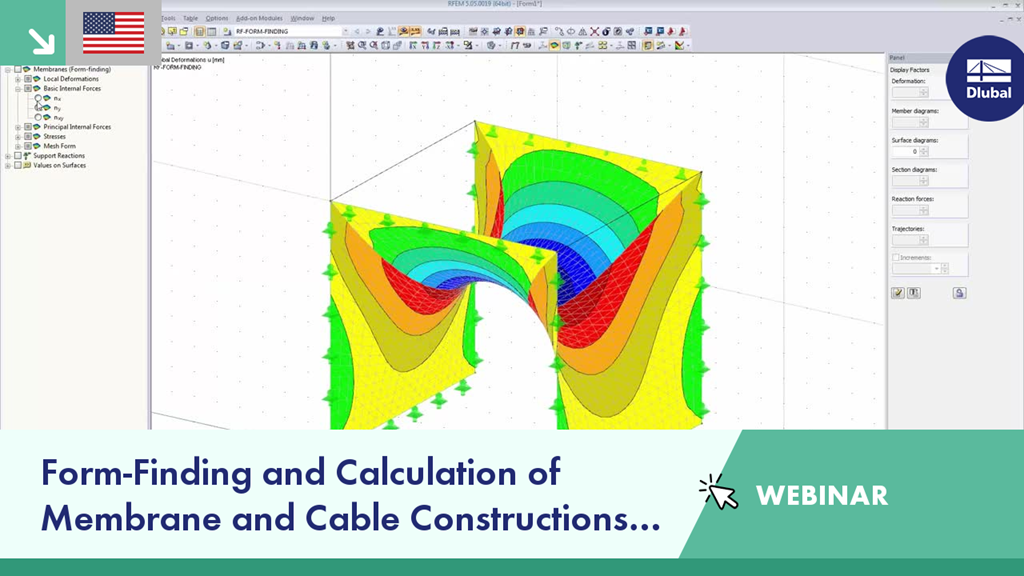

Webinar: Form-Finding and Calculation of Membrane and Cable Constructions in RFEM
Video
First Steps with RFEM
Description
Content:
- Features of the RFEM add-on module RF-FORM-FINDING
- Several examples for finding the form of membrane and cable structures
- Calculation of membrane and cable structures
Keywords
Dlubal Webinar Structural Analysis Structural Analysis Software Dynamic Dynamic Analysis Design EC Eurocode Eurocodes BIM Building Information Modeling CAD FEA FEM Finite Elements Membrane Structure Membrane Webinar about Dlubal Software Webinar Dlubal Tutorial
Write Comment...
Write Comment...
Contact Us
Do you have any questions about our products or which are best suited for your design projects? Contact us via phone, email, or chat or find suggested solutions and useful tips on our FAQ page available 24/7.
![[EN] PF 001402 | Display of Topology on Deformed Structure](/-/media/Images/netgenium/thumbnails/3/2/2/5/9/3225982/3225982.png?la=en&mw=348&mlid=A53337B61D7048D3989730EFCDE9189A&hash=13438A5022611362206E9996C11BB23D56F45CA3)
New
RFEM 6 includes the Form-Finding add-on to determine the equilibrium shapes of surface models subjected to tension and members subjected to axial forces. Activate this add-on in the model's Base Data and use it to find the geometric position in which the prestress of lightweight structures is in equilibrium with the existing boundary conditions.
New
Compared to the RF-FORM-FINDING add-on module (RFEM 5), the following new features have been added to the Form-Finding add-on for RFEM 6:
- Specification of all form-finding load boundary conditions in one load case
- Storage of form-finding results as initial state for further model analysis
- Automatic assignment of the form-finding initial state via combination wizards to all load situations of a design situation
- Additionally form-finding geometry boundary conditions for members (unstressed length, maximum vertical sag, low-point vertical sag)
- Additional form-finding load boundary conditions for members (maximum force in member, minimum force in member, horizontal tension component, tension at i-end, tension at j-end, minimum tension at i-end, minimum tension at j-end)
- Material type "Fabric" and "Foil" in material library
- Parallel form-findings in one model
- Simulation of sequentially building form-finding states in connection with the Construction Stages Analysis (CSA) Add-On
