Question:

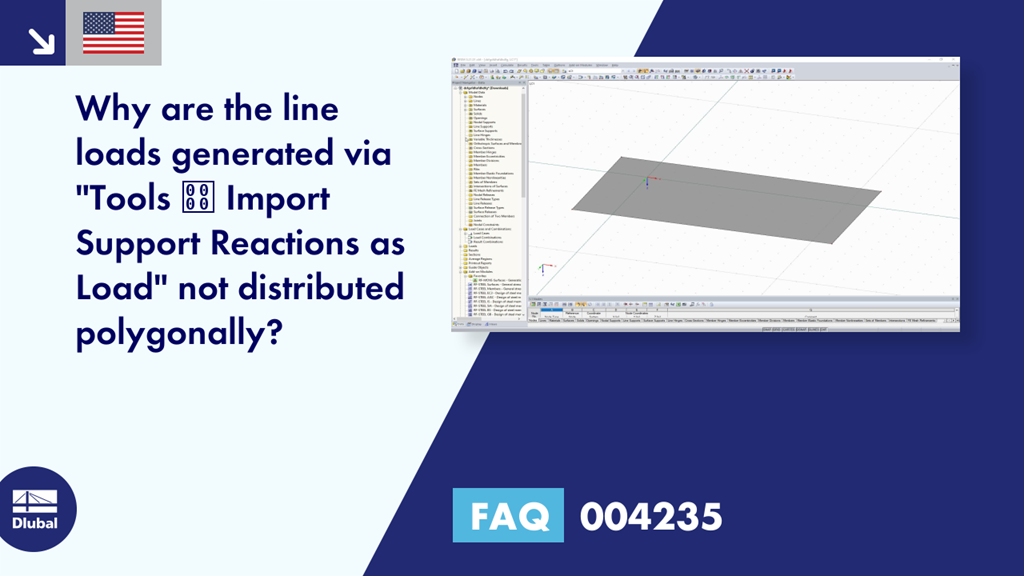

Why are the line loads generated via "Tools → Import Support Reactions as Load" not distributed polygonally?
Answer:
When importing support reactions as loads from another RFEM file, it is possible to select the type of load distribution. In this case, the "Uniform" and "Polygonal" options are available.
