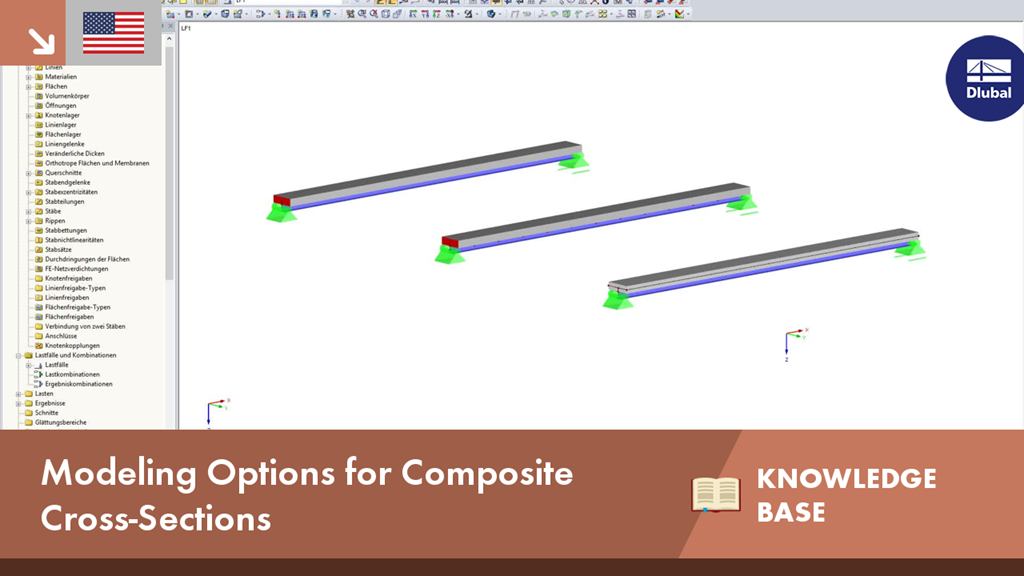

KB 001490 | Modelling Options for Composite Cross-Sections
Video
First Steps with RFEM
Description
In RFEM, there are different options to model composite cross‑sections. In the following example, three different modelling options for a composite cross‑section, consisting of a rolled steel section HEA 300 and a rectangular cross‑section made of concrete w/l = 100/30 cm will be displayed and explained.
