Question:

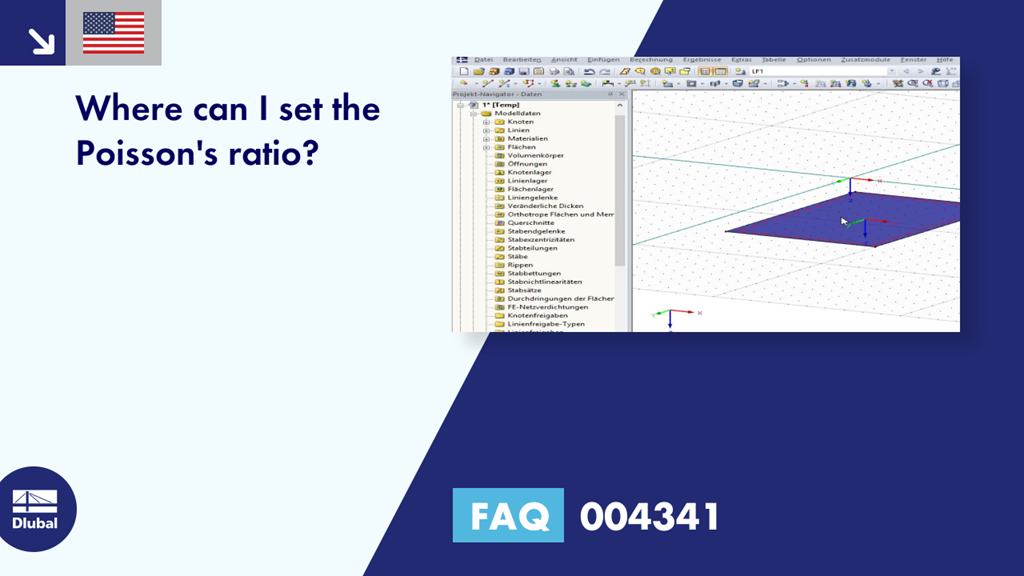

Where can I set the Poisson's ratio?
Answer:
The Poisson's ratio is set under the material using the Edit Material dialog box.
FAQ 004341 | Where can I set the Poisson's ratio?
