Question:

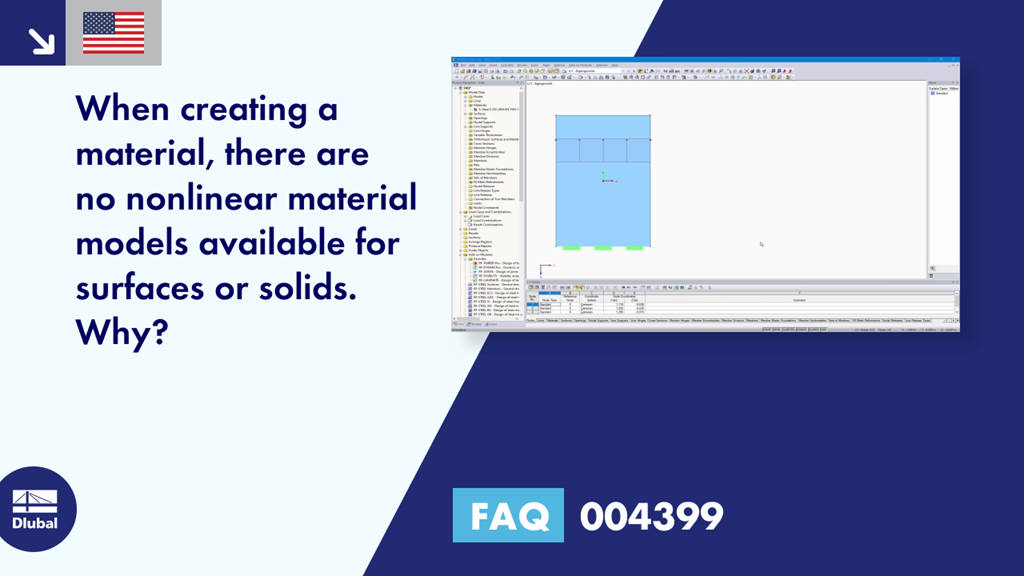

When creating a material, there are no nonlinear material models available for surfaces or solids. Why?
Answer:
The nonlinear material models are only available in the 3D environment. Please make sure that the model type is set to "3D" (see Image 02).
