Question:
How can I change the design of the program interface?
Answer:
Right-click in the toolbar area and select "Customize".
In the "Options" tab, you can now select your preferred appearance of the program interface.

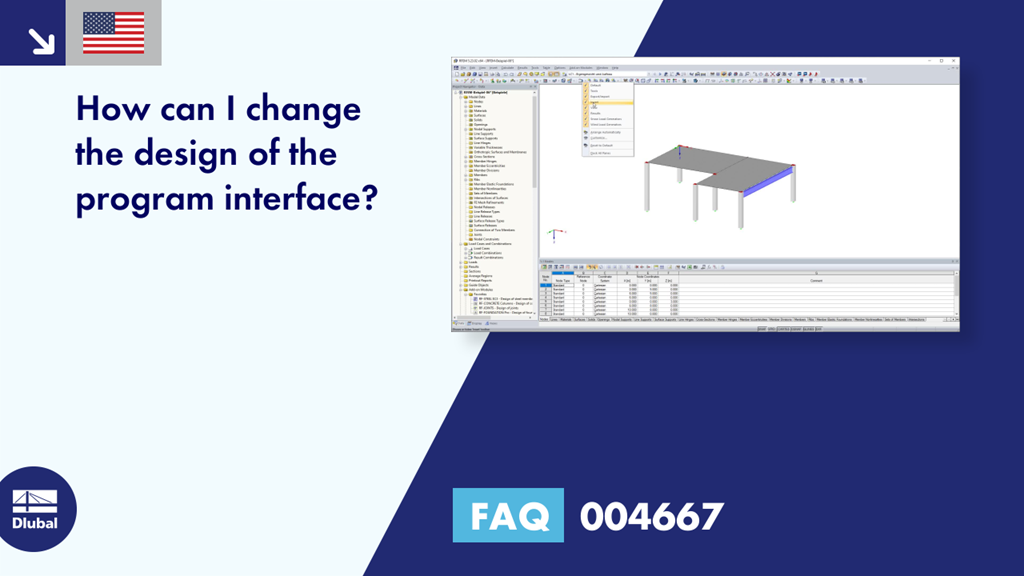

[EN] FAQ 004667 | How can I change the design of the program interface?
