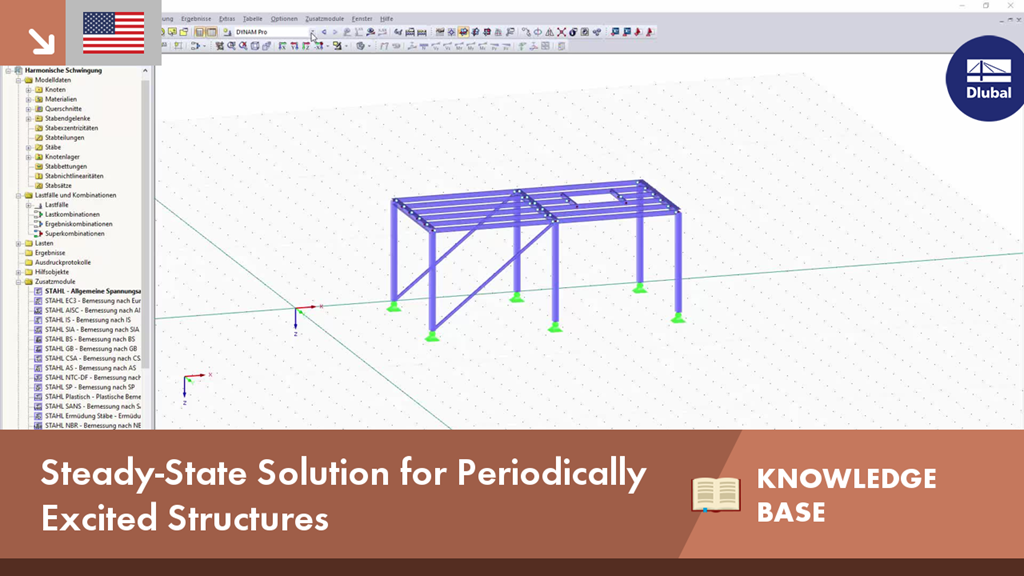

KB 001657 | Steady-State Solution for Periodically Excited Structures
First Steps with RFEM
By means of the modal analysis in the DYNAM Pro - Forced Vibrations add-on module it is possible to determine the steady-state for periodically excited structures. This is an advantage if only the structure's steady state is of interest. Instead of the complete solution of the equation of motion, only the special solution is displayed.
Do you have any questions about our products or need advice on selecting the products needed for your projects?
Contact us via our free e-mail, chat, or forum support or find various suggested solutions and useful tips on our FAQ page.
Models to Download
Knowledge Base Articles
By means of the modal analysis in the DYNAM Pro - Forced Vibrations add-on module it is possible to determine the steady-state for periodically excited structures.
Product Features Articles
Calculation with consideration of a damping ratio (or Lehr's damping) is not possible in the direct time step integrations. Instead, the Rayleigh damping coefficients must be specified by the user.
In technical literature, the given damping ratio for specific construction forms is in many cases only a rough approximation of the real damping ratios. In RF-/DYNAM Pro - Forced Vibrations, it is possible to use the value of damping ratio to determine the Rayleigh damping. This may occur at one or two natural angular frequencies defined by the user.
