Question:

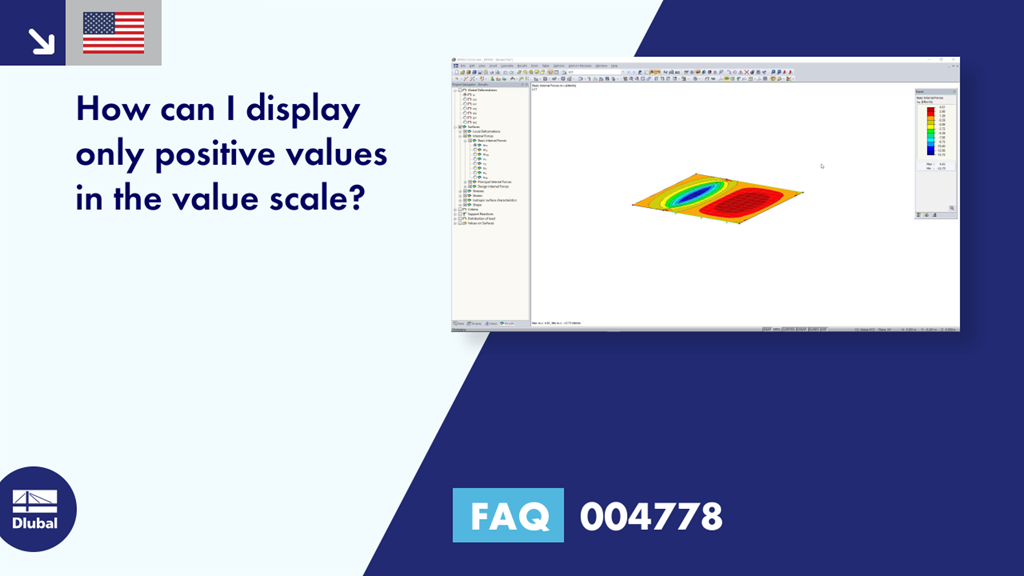

How can I display only positive values in the value scale?
Answer:
The value scale can be adjusted individually as follows:
Double-click the color scale.
Enter one or more desired values.
Click "Fill".
Save and confirm; see the image.
