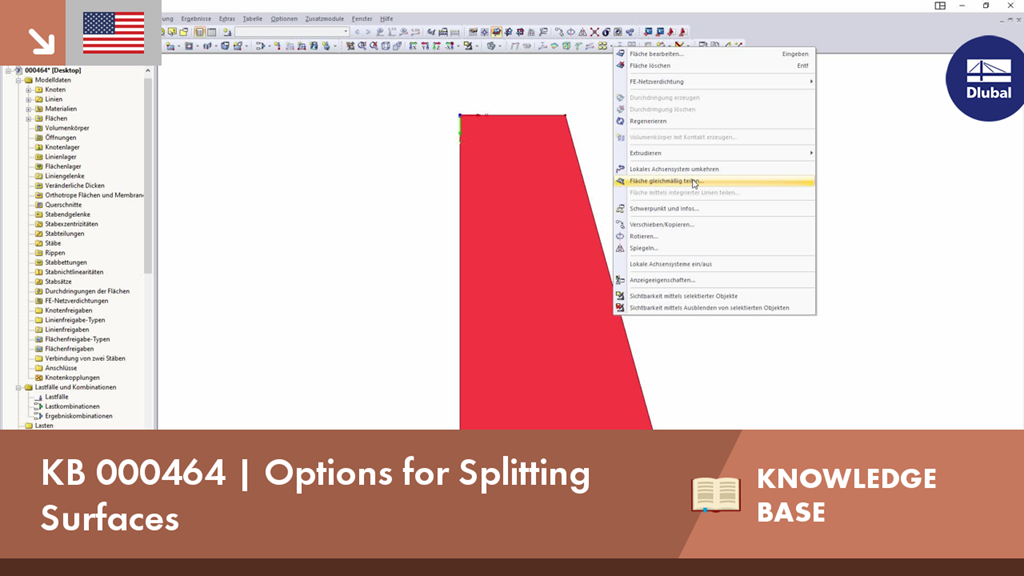

KB 000464 | Options for Splitting Surfaces
Video
First Steps with RFEM
Description
If you want to split a surface limited by four sides into several surfaces, the easiest way to do this is to use the "Split Surface" function.
