When you finish modeling a structure, it can often happen that some unused nodes still remain in the model. With the "Select" → "Free Nodes" function, you can select these nodes very quickly, and then delete them.

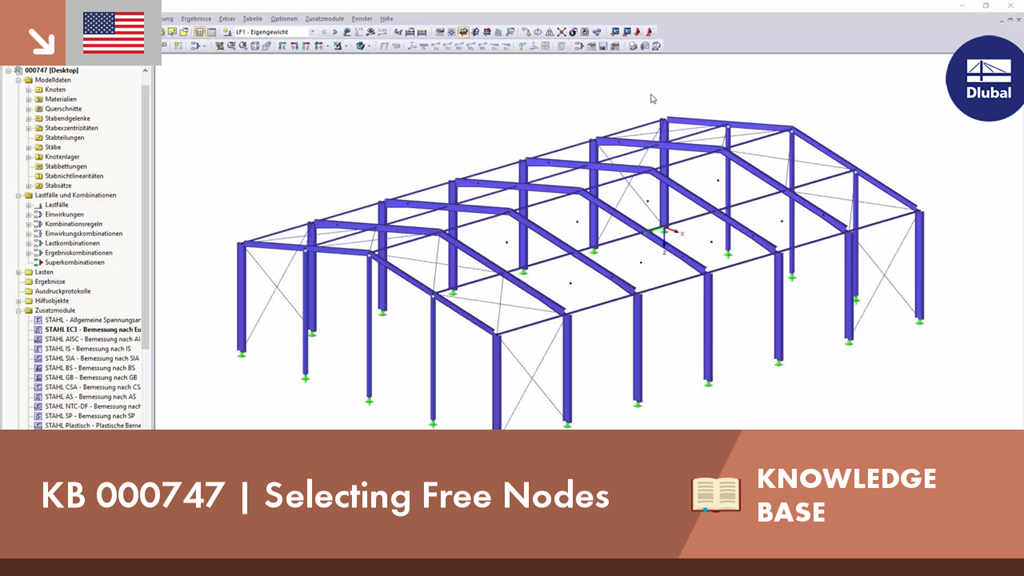

KB 000747 | Selecting Free Nodes
